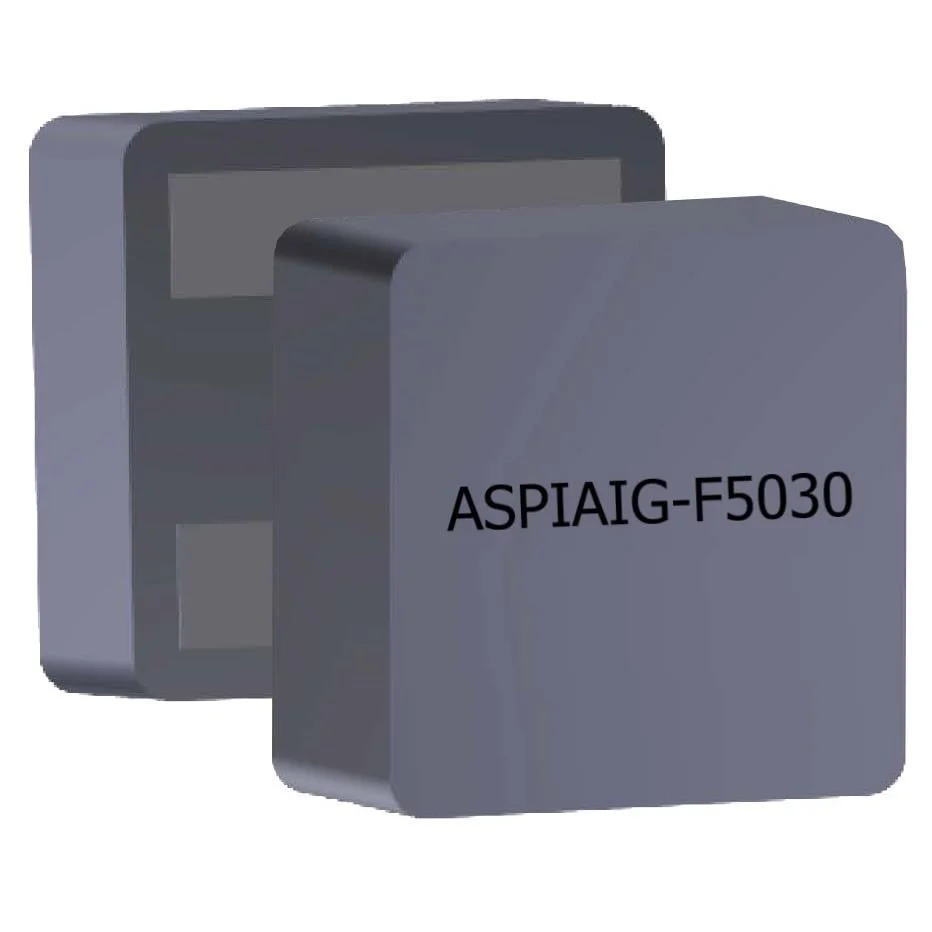

FIXED IND 820NH 12.9A 5.78 MOHM
| Inductance | 820 nH |
| Tolerance | ±20% |
| Current Rating | 12.9 A |
| DC Resistance (DCR) | 5.78mOhm Max |
| saturationCurrent | 17.6A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 5030 |
| Case / Size | Surface Mount |
| Supplier | Abracon |
| Description | FIXED IND 820NH 12.9A 5.78 MOHM |
| Series | ASPIAIG-F |
| productStatus | Active |
| typeConstruction | Molded |
| coreMaterial | - |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | AEC-Q200 |
| testFrequency | 100 kHz |
| mountingType | - |
| supplierDevicePackage | Nonstandard |
| heightMax | 0.217" L x 0.209" W (5.50mm x 5.30mm) |
| features | 0.122" (3.10mm) |
