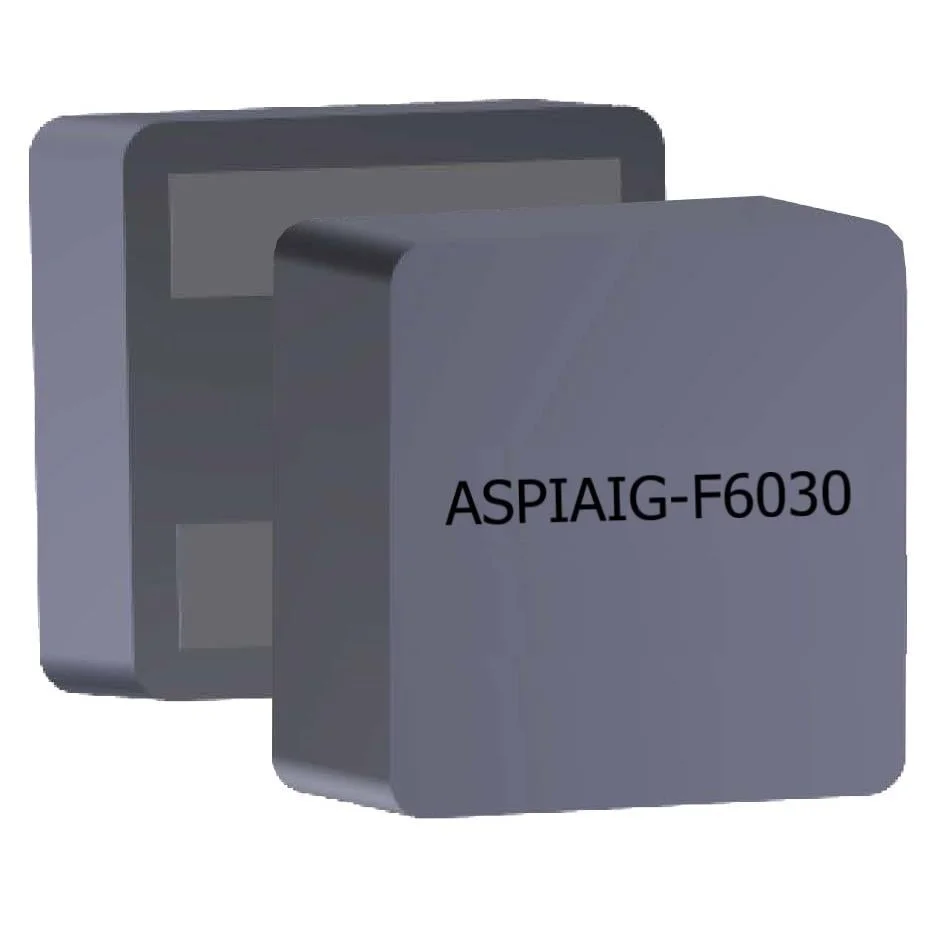

FIXED IND 4.5UH 7A 25.3 MOHM SMD
| Inductance | 4.5 µH |
| Tolerance | ±20% |
| Current Rating | 7 A |
| DC Resistance (DCR) | 25.3mOhm Max |
| saturationCurrent | 8A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 6030 |
| Case / Size | Surface Mount |
| Supplier | Abracon |
| Description | FIXED IND 4.5UH 7A 25.3 MOHM SMD |
| Series | ASPIAIG-F |
| productStatus | Active |
| typeConstruction | Molded |
| coreMaterial | - |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | 20MHz |
| ratings | AEC-Q200 |
| testFrequency | 100 kHz |
| mountingType | - |
| supplierDevicePackage | Nonstandard |
| heightMax | 0.260" L x 0.252" W (6.60mm x 6.40mm) |
| features | 0.118" (3.00mm) |
