Description

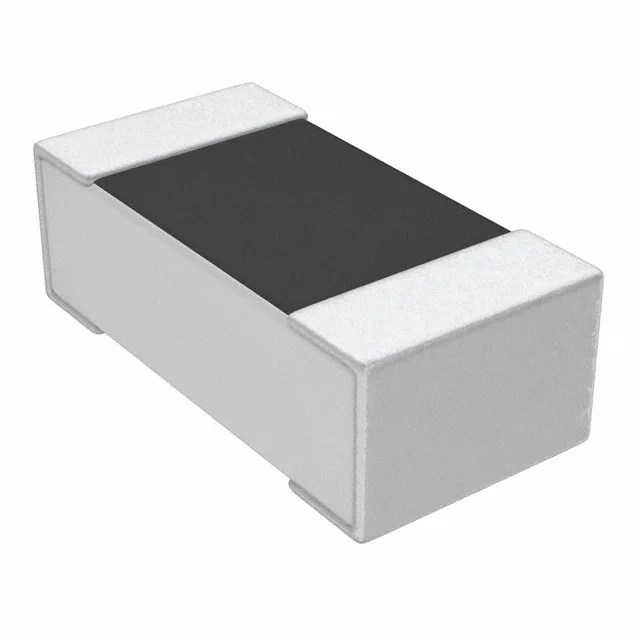

FIXED IND 1NH 300MA 300 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for ATFC-0201-1N0B-T.
ATFC-0201-1N0B-T has an inductance value of 1 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
ATFC-0201-1N0B-T is rated for 300 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
ATFC-0201-1N0B-T lists a DC resistance of 300mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
ATFC-0201-1N0B-T uses a package or case of 0201 (0603 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from ATFC-0201-1N0B-T to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 1 nH |
| Tolerance | ±0.1nH |
| Current Rating | 300 mA |
| DC Resistance (DCR) | 300mOhm Max |
| Operating Temperature | -25°C ~ 85°C |
| Dimensions | 0.024" L x 0.012" W (0.60mm x 0.30mm) |
| Case / Size | 0201 (0603 Metric) |
| Package / Case | 0201 (0603 Metric) |
| Supplier | Abracon |
| Description | FIXED IND 1NH 300MA 300 MOHM SMD |
| Series | ATFC-0201 |
| Product Status | Active |
| Type / Construction | Thin Film |
| Core Material | Ceramic |
| Shielding | Unshielded |
| Q @ Frequency | 8 @ 500MHz |
| Self Resonant Frequency | 9GHz |
| Inductance Test Frequency | 500 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 0201 (0603 Metric) |
| Height - Seated (Max) | 0.011" (0.28mm) |
