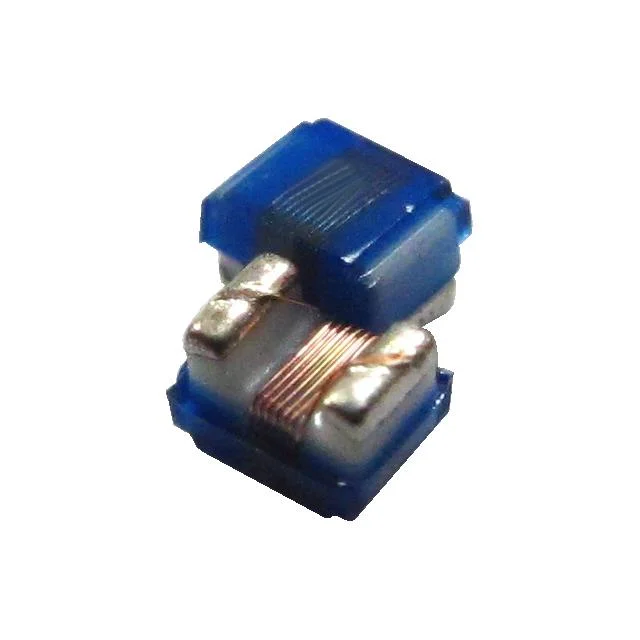

FIXED IND 43NH 380MA 290 MOHM
| Inductance | 43 nH |
| Tolerance | ±2% |
| Current Rating | 380 mA |
| DC Resistance (DCR) | 290mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.063" L x 0.040" W (1.60mm x 1.02mm) |
| Case / Size | 0603 (1608 Metric) |
| Supplier | Pulse Electronics |
| Description | FIXED IND 43NH 380MA 290 MOHM |
| Series | AWCM |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ceramic |
| shielding | Unshielded |
| qFactor | 40 @ 200MHz |
| selfResonantFreq | 2.7GHz |
| ratings | AEC-Q200 |
| testFrequency | 100 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 0603 |
| heightMax | 0.040" (1.02mm) |
| features | - |
