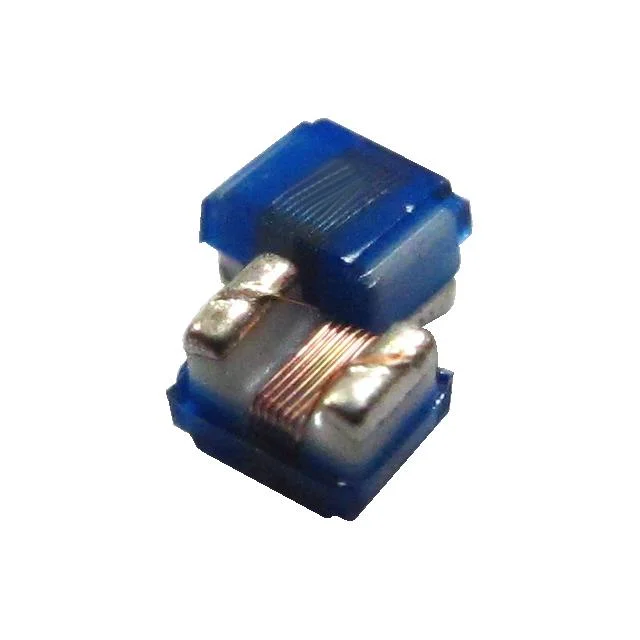

FIXED IND 220NH 120MA 2.5 OHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for AWCM00161008R22J00.
AWCM00161008R22J00 has an inductance value of 220 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
AWCM00161008R22J00 is rated for 120 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
AWCM00161008R22J00 lists a DC resistance of 2.5Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
AWCM00161008R22J00 uses a package or case of 0603 (1608 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from AWCM00161008R22J00 to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 220 nH |
| Tolerance | ±5% |
| Current Rating | 120 mA |
| DC Resistance (DCR) | 2.5Ohm Max |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.063" L x 0.040" W (1.60mm x 1.02mm) |
| Case / Size | 0603 (1608 Metric) |
| Package / Case | 0603 (1608 Metric) |
| Supplier | Pulse Electronics |
| Description | FIXED IND 220NH 120MA 2.5 OHM |
| Series | AWCM |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ceramic |
| Shielding | Unshielded |
| Q @ Frequency | 25 @ 100MHz |
| Self Resonant Frequency | 1.2GHz |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 100 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 0603 |
| Height - Seated (Max) | 0.040" (1.02mm) |
