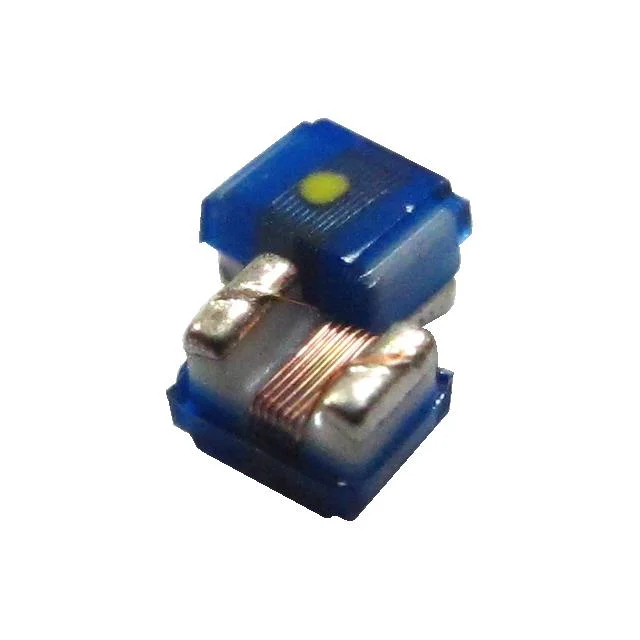

FIXED IND 22NH 500MA 220 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for AWCS0023171522NK00.
AWCS0023171522NK00 has an inductance value of 22 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
AWCS0023171522NK00 is rated for 500 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
AWCS0023171522NK00 lists a DC resistance of 220mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
AWCS0023171522NK00 uses a package or case of 0805 (2012 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from AWCS0023171522NK00 to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 22 nH |
| Tolerance | ±10% |
| Current Rating | 500 mA |
| DC Resistance (DCR) | 220mOhm Max |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.093" L x 0.068" W (2.35mm x 1.73mm) |
| Case / Size | 0805 (2012 Metric) |
| Package / Case | 0805 (2012 Metric) |
| Supplier | Pulse Electronics |
| Description | FIXED IND 22NH 500MA 220 MOHM |
| Series | AWCS |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ceramic |
| Shielding | Unshielded |
| Q @ Frequency | 55 @ 500MHz |
| Self Resonant Frequency | 2.6GHz |
| Inductance Test Frequency | 250 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 0805 |
| Height - Seated (Max) | 0.060" (1.52mm) |
