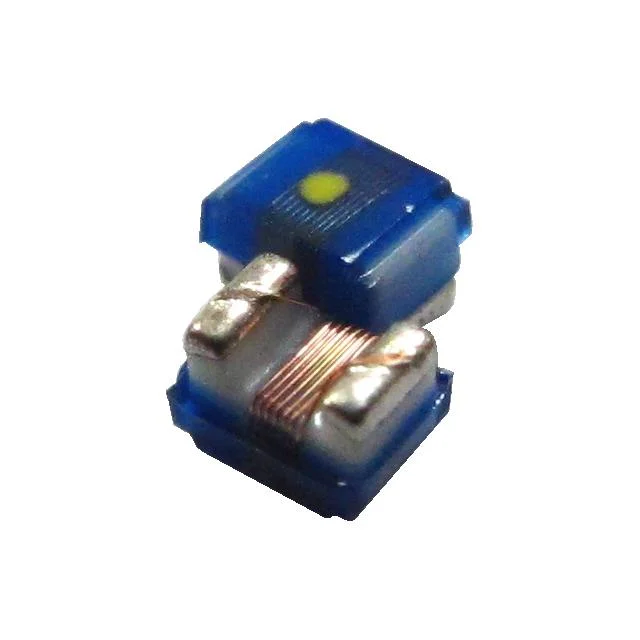

FIXED IND 680NH 190MA 2.2 OHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for AWCS00231715R68G00.
AWCS00231715R68G00 has an inductance value of 680 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
AWCS00231715R68G00 is rated for 190 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
AWCS00231715R68G00 lists a DC resistance of 2.2Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
AWCS00231715R68G00 uses a package or case of 0805 (2012 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from AWCS00231715R68G00 to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 680 nH |
| Tolerance | ±2% |
| Current Rating | 190 mA |
| DC Resistance (DCR) | 2.2Ohm Max |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.093" L x 0.068" W (2.35mm x 1.73mm) |
| Case / Size | 0805 (2012 Metric) |
| Package / Case | 0805 (2012 Metric) |
| Supplier | Pulse Electronics |
| Description | FIXED IND 680NH 190MA 2.2 OHM |
| Series | AWCS |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ceramic |
| Shielding | Unshielded |
| Q @ Frequency | 23 @ 50MHz |
| Self Resonant Frequency | 188MHz |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 25 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 0805 |
| Height - Seated (Max) | 0.060" (1.52mm) |
