Description

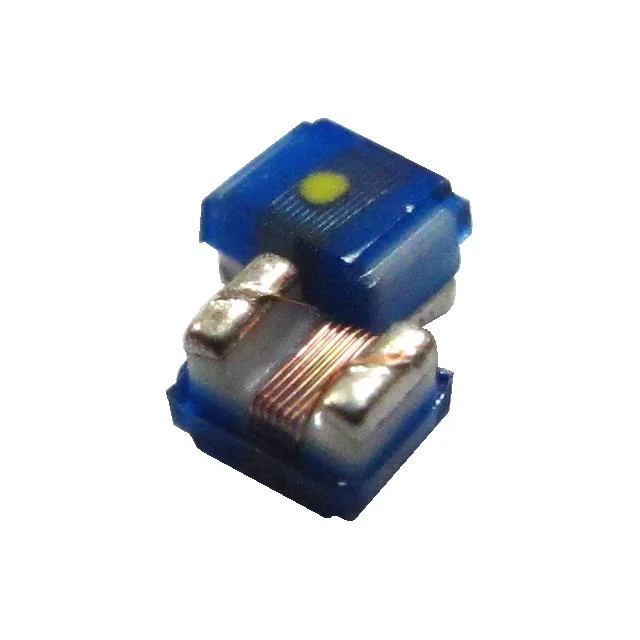

FIXED IND 680NH 1A 80 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for AWCS00292821R68J00.
AWCS00292821R68J00 has an inductance value of 680 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
AWCS00292821R68J00 is rated for 1 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
AWCS00292821R68J00 lists a DC resistance of 80mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
AWCS00292821R68J00 uses a package or case of 1008 (2520 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from AWCS00292821R68J00 to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 680 nH |
| Tolerance | ±5% |
| Current Rating | 1 A |
| DC Resistance (DCR) | 80mOhm Max |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.115" L x 0.110" W (2.92mm x 2.79mm) |
| Case / Size | 1008 (2520 Metric) |
| Package / Case | 1008 (2520 Metric) |
| Supplier | Pulse Electronics |
| Description | FIXED IND 680NH 1A 80 MOHM SMD |
| Series | AWCS |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ceramic |
| Shielding | Unshielded |
| Q @ Frequency | 50 @ 50MHz |
| Self Resonant Frequency | 4.1GHz |
| Inductance Test Frequency | 50 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 1008 |
| Height - Seated (Max) | 0.083" (2.10mm) |
