Description

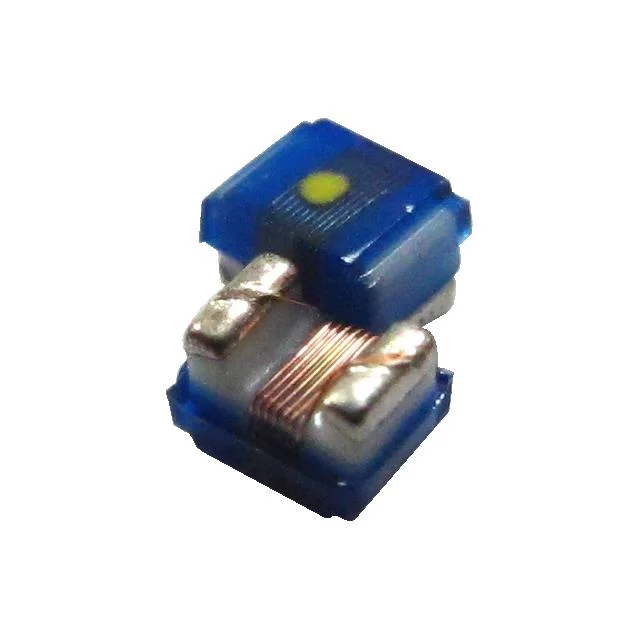

FIXED IND 56NH 1A 140 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for AWCS0037282256NG00.
AWCS0037282256NG00 has an inductance value of 56 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
AWCS0037282256NG00 is rated for 1 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
AWCS0037282256NG00 lists a DC resistance of 140mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
AWCS0037282256NG00 uses a package or case of 1210 (3225 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from AWCS0037282256NG00 to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 56 nH |
| Tolerance | ±2% |
| Current Rating | 1 A |
| DC Resistance (DCR) | 140mOhm Max |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.146" L x 0.110" W (3.70mm x 2.80mm) |
| Case / Size | 1210 (3225 Metric) |
| Package / Case | 1210 (3225 Metric) |
| Supplier | Pulse Electronics |
| Description | FIXED IND 56NH 1A 140 MOHM SMD |
| Series | AWCS |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ceramic |
| Shielding | Unshielded |
| Q @ Frequency | 55 @ 300MHz |
| Self Resonant Frequency | 1.45GHz |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 100 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 1210 |
| Height - Seated (Max) | 0.087" (2.20mm) |
