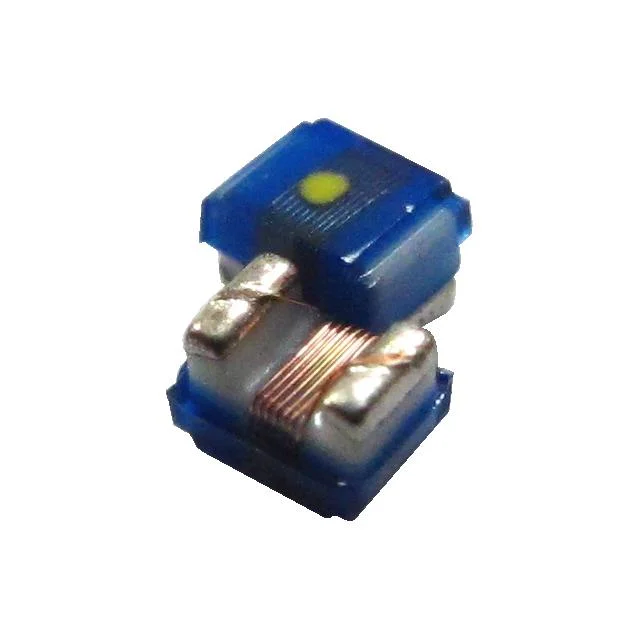

Description
FIXED IND 750NH 320MA 2.25 OHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for AWCS00372822R75J00.
AWCS00372822R75J00 has an inductance value of 750 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
AWCS00372822R75J00 is rated for 320 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
AWCS00372822R75J00 lists a DC resistance of 2.25Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
AWCS00372822R75J00 uses a package or case of 1210 (3225 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from AWCS00372822R75J00 to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 750 nH |
| Tolerance | ±5% |
| Current Rating | 320 mA |
| DC Resistance (DCR) | 2.25Ohm Max |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.146" L x 0.110" W (3.70mm x 2.80mm) |
| Case / Size | 1210 (3225 Metric) |
| Package / Case | 1210 (3225 Metric) |
| Supplier | Pulse Electronics |
| Description | FIXED IND 750NH 320MA 2.25 OHM |
| Series | AWCS |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ceramic |
| Shielding | Unshielded |
| Q @ Frequency | 45 @ 150MHz |
| Self Resonant Frequency | 440MHz |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 35 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 1210 |
| Height - Seated (Max) | 0.087" (2.20mm) |
