Description

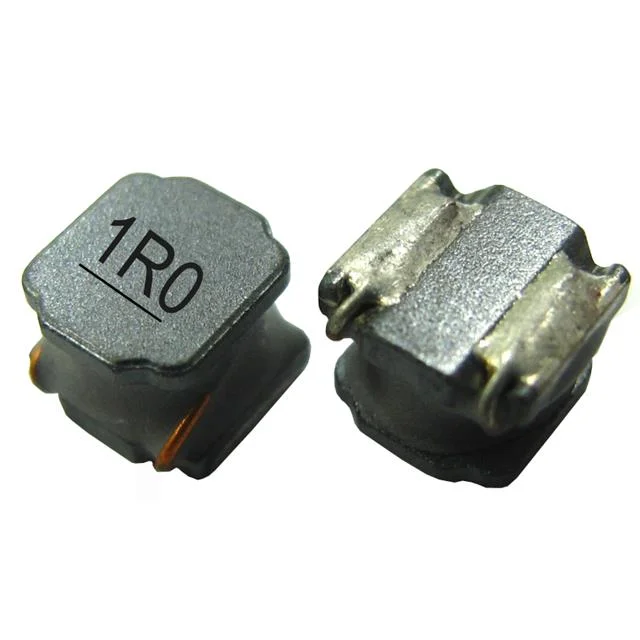

FIXED IND 22UH 1.1A 260 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for AWVF00606020220T00.
AWVF00606020220T00 has an inductance value of 22 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
AWVF00606020220T00 is rated for 1.1 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
AWVF00606020220T00 lists a DC resistance of 260mOhm. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
AWVF00606020220T00 uses a package or case of 2424 (6060 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from AWVF00606020220T00 to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 22 µH |
| Tolerance | ±30% |
| Current Rating | 1.1 A |
| DC Resistance (DCR) | 260mOhm |
| Saturation Current | 1.3A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.236" L x 0.236" W (6.00mm x 6.00mm) |
| Case / Size | 2424 (6060 Metric) |
| Package / Case | 2424 (6060 Metric) |
| Supplier | Pulse Electronics |
| Description | FIXED IND 22UH 1.1A 260 MOHM SMD |
| Series | AWVF |
| Product Status | Active |
| Core Material | Ferrite |
| Shielding | Shielded |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 2424 |
| Height - Seated (Max) | 0.087" (2.20mm) |
