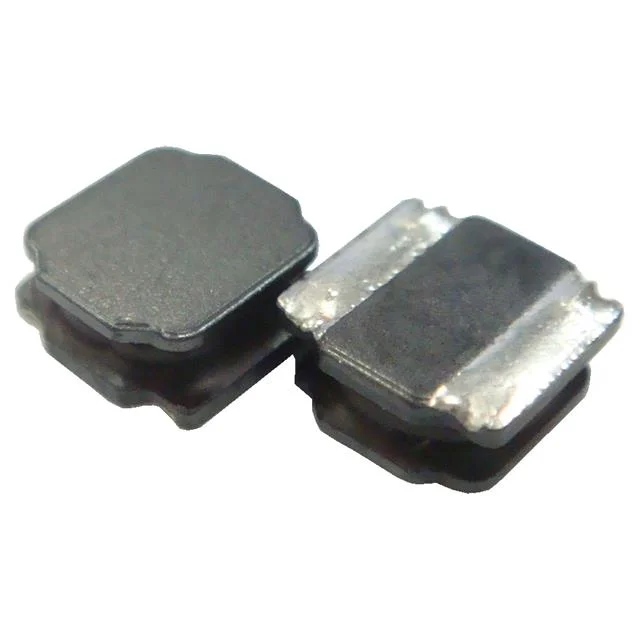

FIXED IND 2.2UH 3.3A 21 MOHM SMD
| Inductance | 2.2 µH |
| Tolerance | ±30% |
| Current Rating | 3.3 A |
| DC Resistance (DCR) | 21mOhm |
| saturationCurrent | 5.1A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.197" L x 0.197" W (5.00mm x 5.00mm) |
| Case / Size | 2020 (5050 Metric) |
| Supplier | Pulse Electronics |
| Description | FIXED IND 2.2UH 3.3A 21 MOHM SMD |
| Series | AWVS |
| productStatus | Active |
| typeConstruction | - |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | AEC-Q200 |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 2020 |
| heightMax | 0.165" (4.20mm) |
| features | - |
