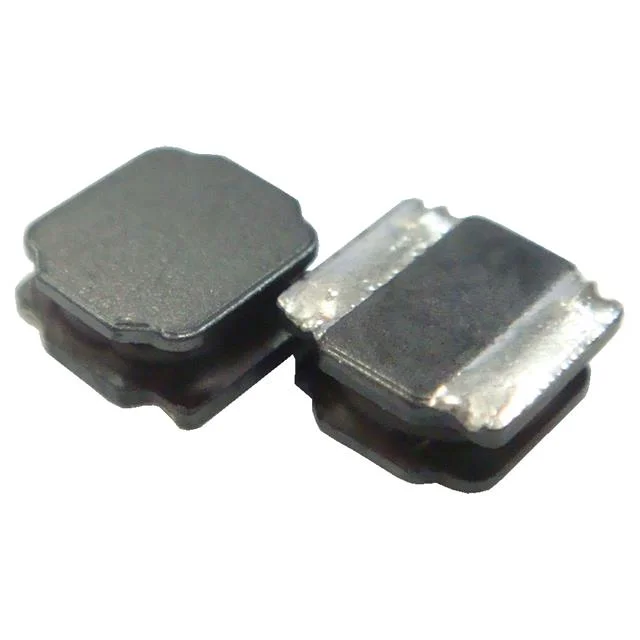

FIXED IND 3.3UH 2.4A 40 MOHM SMD
| Inductance | 3.3 µH |
| Tolerance | ±30% |
| Current Rating | 2.4 A |
| DC Resistance (DCR) | 40mOhm |
| saturationCurrent | 2.8A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.236" L x 0.236" W (6.00mm x 6.00mm) |
| Case / Size | 2424 (6060 Metric) |
| Supplier | Pulse Electronics |
| Description | FIXED IND 3.3UH 2.4A 40 MOHM SMD |
| Series | AWVS |
| productStatus | Active |
| typeConstruction | - |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | AEC-Q200 |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 2424 |
| heightMax | 0.087" (2.20mm) |
| features | - |
