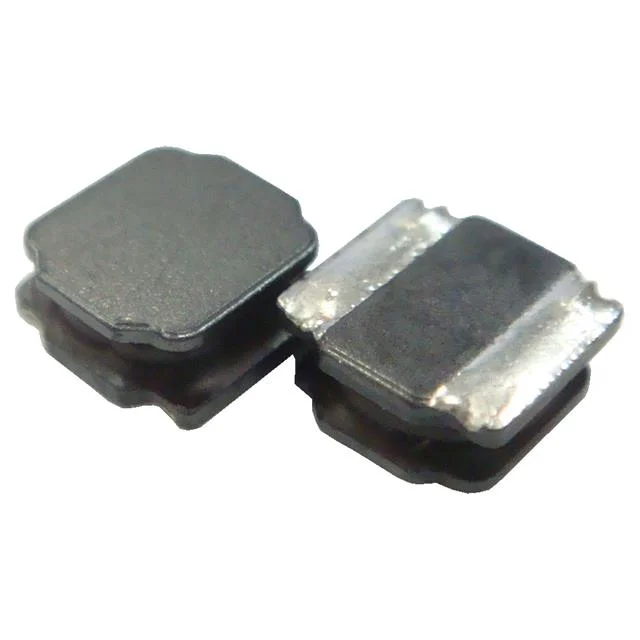

FIXED IND 56UH 990MA 310 MOHM
| Inductance | 56 µH |
| Tolerance | ±30% |
| Current Rating | 990 mA |
| DC Resistance (DCR) | 310mOhm |
| saturationCurrent | 1.5A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.236" L x 0.236" W (6.00mm x 6.00mm) |
| Case / Size | 2424 (6060 Metric) |
| Supplier | Pulse Electronics |
| Description | FIXED IND 56UH 990MA 310 MOHM |
| Series | AWVS |
| productStatus | Active |
| typeConstruction | - |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | AEC-Q200 |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 2424 |
| heightMax | 0.185" (4.70mm) |
| features | - |
