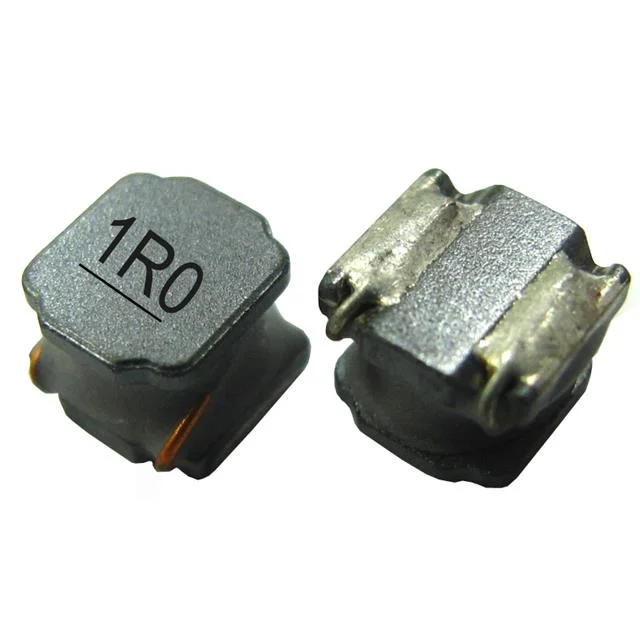

Description
FIXED IND 2.2UH 1.3A 135 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for AWVT002520102R2M00.
AWVT002520102R2M00 has an inductance value of 2.2 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
AWVT002520102R2M00 is rated for 1.3 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
AWVT002520102R2M00 lists a DC resistance of 135mOhm. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
AWVT002520102R2M00 uses a package or case of 1008 (2520 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from AWVT002520102R2M00 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating | 1.3 A |
| DC Resistance (DCR) | 135mOhm |
| Saturation Current | 1.2A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Case / Size | 1008 (2520 Metric) |
| Package / Case | 1008 (2520 Metric) |
| Supplier | Pulse Electronics |
| Description | FIXED IND 2.2UH 1.3A 135 MOHM |
| Series | AWVT |
| Product Status | Active |
| Type / Construction | - |
| Core Material | - |
| Shielding | Unshielded |
| Q @ Frequency | - |
| Self Resonant Frequency | - |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 1 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 1008 |
| Height - Seated (Max) | 0.040" (1.02mm) |
| Features | - |
