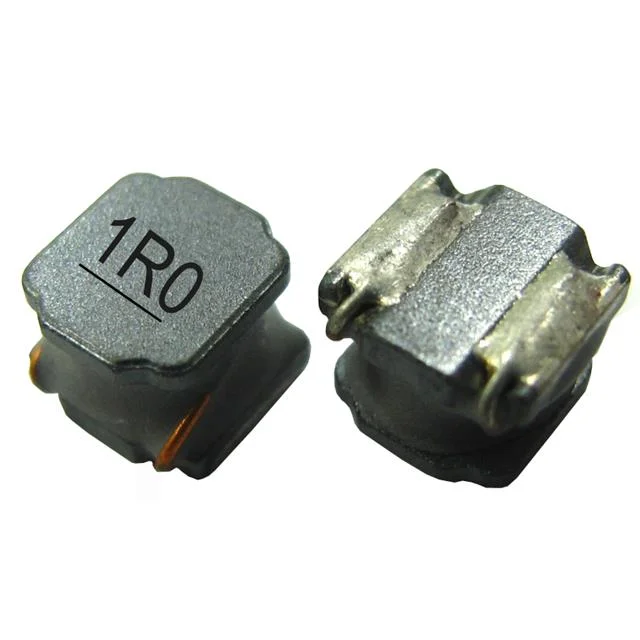

AWVT002520103R3M00
Pulse Electronics
Description
FIXED IND 3.3UH 1A 220 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for AWVT002520103R3M00.
AWVT002520103R3M00 has an inductance value of 3.3 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
AWVT002520103R3M00 is rated for 1 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
AWVT002520103R3M00 lists a DC resistance of 220mOhm. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
AWVT002520103R3M00 uses a package or case of 1008 (2520 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from AWVT002520103R3M00 to manufacturer, series, and broader datasheet collections.
Similar-specification candidates · Engineering review required
Screened against recorded construction, core, mounting, dimensions and current/DCR. Land pattern, test conditions and circuit compatibility still require validation.
Missing evidence or no candidates passed screening. A replacement cannot be determined; request a review of the original datasheets.
Product Attributes
| Inductance | 3.3 µH |
| Tolerance | ±20% |
| Current Rating | 1 A |
| DC Resistance (DCR) | 220mOhm |
| Saturation Current | 1A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Case / Size | 1008 (2520 Metric) |
| Package / Case | 1008 (2520 Metric) |
| Supplier | Pulse Electronics |
| Description | FIXED IND 3.3UH 1A 220 MOHM SMD |
| Series | AWVT |
| Product Status | Active |
| Shielding | Unshielded |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 1 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 1008 |
| Height - Seated (Max) | 0.040" (1.02mm) |
