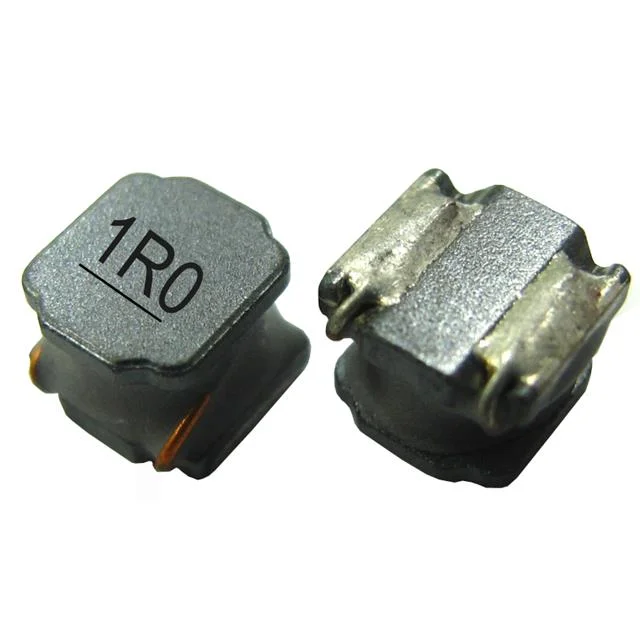

AWVT004040122R2T00
Pulse Electronics
Description
FIXED IND 2.2UH 2A 60 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for AWVT004040122R2T00.
AWVT004040122R2T00 has an inductance value of 2.2 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
AWVT004040122R2T00 is rated for 2 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
AWVT004040122R2T00 lists a DC resistance of 60mOhm. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
AWVT004040122R2T00 uses a package or case of 1616 (4040 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from AWVT004040122R2T00 to manufacturer, series, and broader datasheet collections.
Similar-specification candidates · Engineering review required
Screened against recorded construction, core, mounting, dimensions and current/DCR. Land pattern, test conditions and circuit compatibility still require validation.
Missing evidence or no candidates passed screening. A replacement cannot be determined; request a review of the original datasheets.
Product Attributes
| Inductance | 2.2 µH |
| Tolerance | ±30% |
| Current Rating | 2 A |
| DC Resistance (DCR) | 60mOhm |
| Saturation Current | 1.7A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.157" L x 0.157" W (4.00mm x 4.00mm) |
| Case / Size | 1616 (4040 Metric) |
| Package / Case | 1616 (4040 Metric) |
| Supplier | Pulse Electronics |
| Description | FIXED IND 2.2UH 2A 60 MOHM SMD |
| Series | AWVT |
| Product Status | Active |
| Shielding | Unshielded |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 1 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 1616 |
| Height - Seated (Max) | 0.051" (1.30mm) |
