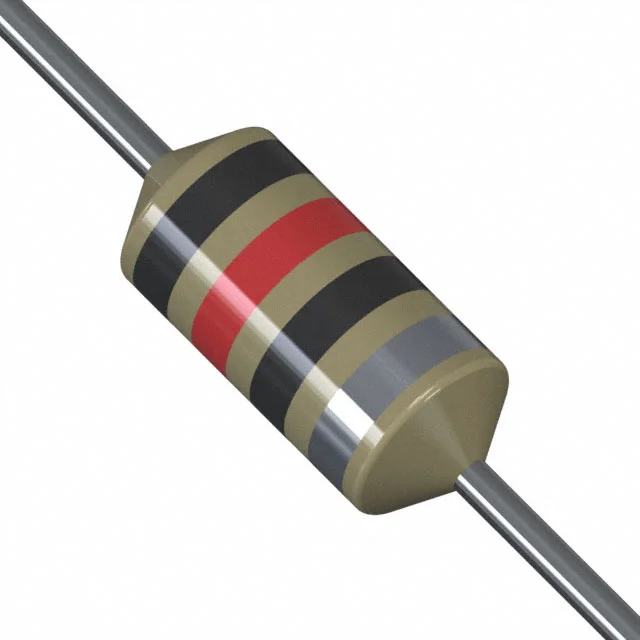

FIXED IND 2.2UH 3.4A 57 MOHM TH
| Inductance | 2.2 µH |
| Tolerance | ±10% |
| Current Rating | 3.4 A |
| DC Resistance (DCR) | 57mOhm Max |
| saturationCurrent | 4A |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.157" Dia x 0.374" L (4.00mm x 9.50mm) |
| Case / Size | Axial |
| Supplier | TDK |
| Description | FIXED IND 2.2UH 3.4A 57 MOHM TH |
| Series | B78108E |
| productStatus | Last Time Buy |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | 50 @ 7.96MHz |
| selfResonantFreq | 150MHz |
| ratings | - |
| testFrequency | 1 MHz |
| mountingType | Through Hole |
| supplierDevicePackage | - |
| heightMax | - |
| features | - |
