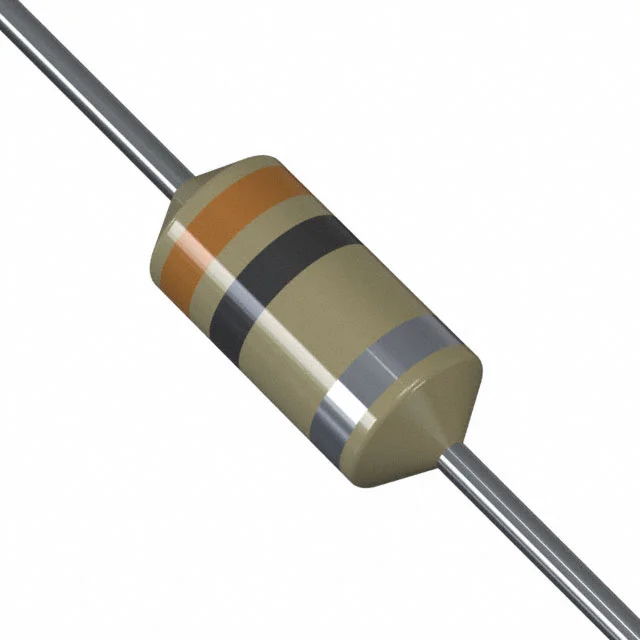

FIXED IND 470NH 5A 27 MOHM TH
| Inductance | 470 nH |
| Tolerance | ±20% |
| Current Rating | 5 A |
| DC Resistance (DCR) | 27mOhm Max |
| saturationCurrent | 8.5A |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.157" Dia x 0.374" L (4.00mm x 9.50mm) |
| Case / Size | Axial |
| Supplier | TDK |
| Description | FIXED IND 470NH 5A 27 MOHM TH |
| Series | B78108E |
| productStatus | Last Time Buy |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | 60 @ 7.96MHz |
| selfResonantFreq | 400MHz |
| ratings | - |
| testFrequency | 1 MHz |
| mountingType | Through Hole |
| supplierDevicePackage | - |
| heightMax | - |
| features | - |
