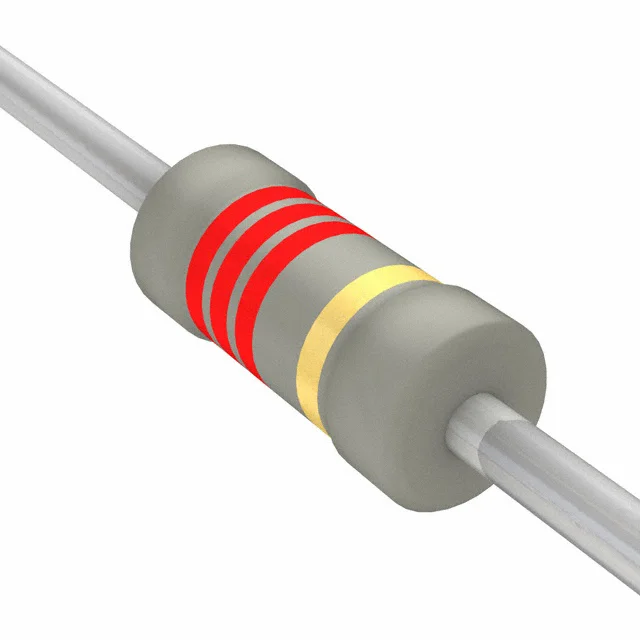

FIXED IND 2.2MH 80MA 34.7 OHM TH
| Inductance | 2.2 mH |
| Tolerance | ±5% |
| Current Rating | 80 mA |
| DC Resistance (DCR) | 34.7Ohm Max |
| saturationCurrent | - |
| Operating Temperature | - |
| Dimensions | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) |
| Case / Size | Axial |
| Supplier | TDK |
| Description | FIXED IND 2.2MH 80MA 34.7 OHM TH |
| Series | BC |
| productStatus | Last Time Buy |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | 40 @ 252kHz |
| selfResonantFreq | 1.1MHz |
| ratings | - |
| testFrequency | 252 kHz |
| mountingType | Through Hole |
| supplierDevicePackage | - |
| heightMax | - |
| features | - |
