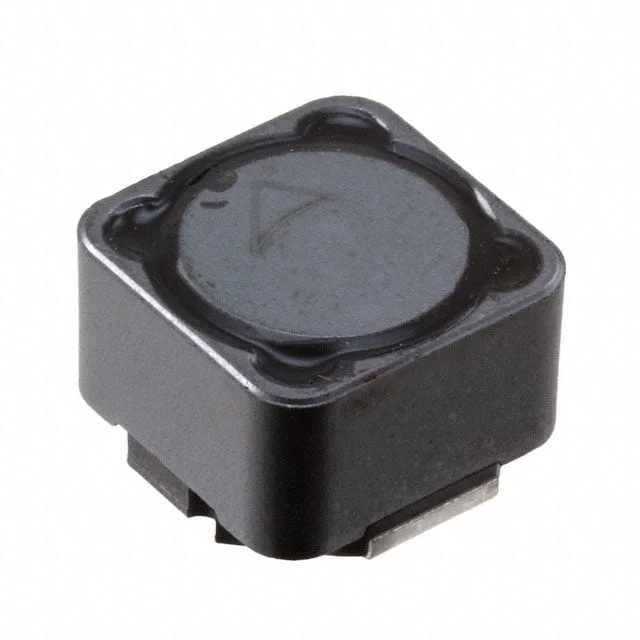

FIXED IND 47UH 2.8A 67 MOHM SMD
| Inductance | 47 µH |
| Tolerance | ±20% |
| Current Rating | 2.8 A |
| DC Resistance (DCR) | 67mOhm Max |
| saturationCurrent | 3A |
| Operating Temperature | -55°C ~ 150°C |
| Dimensions | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Case / Size | Nonstandard |
| Supplier | TDK |
| Description | FIXED IND 47UH 2.8A 67 MOHM SMD |
| Series | B82477P4 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | AEC-Q200 |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.335" (8.50mm) |
| features | - |
