Description

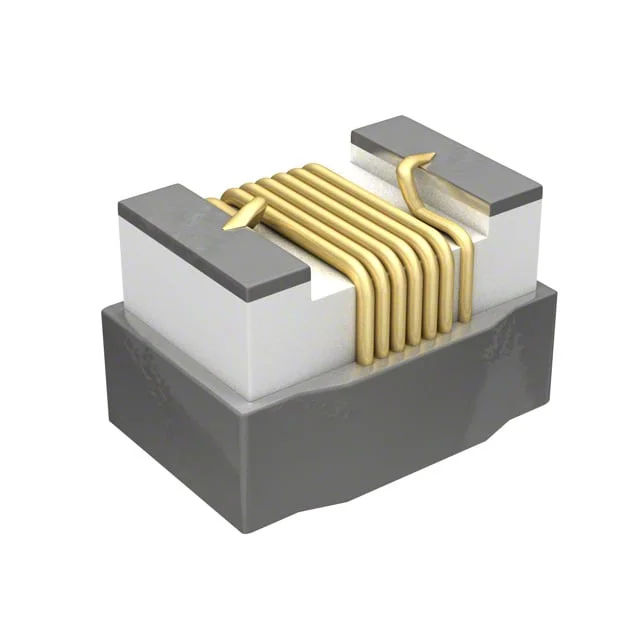

FIXED IND 4.7UH 90MA 3.8 OHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for B82498F1472J000.
B82498F1472J000 has an inductance value of 4.7 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
B82498F1472J000 is rated for 90 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
B82498F1472J000 lists a DC resistance of 3.8Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
B82498F1472J000 uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from B82498F1472J000 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 4.7 µH |
| Tolerance | ±5% |
| Current Rating | 90 mA |
| DC Resistance (DCR) | 3.8Ohm Max |
| Saturation Current | - |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.091" L x 0.067" W (2.30mm x 1.70mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | TDK |
| Description | FIXED IND 4.7UH 90MA 3.8 OHM SMD |
| Series | SIMID |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Q @ Frequency | 20 @ 7.96MHz |
| Self Resonant Frequency | 210MHz |
| Ratings | - |
| Inductance Test Frequency | 7.96 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 0805 (2012 Metric) |
| Height - Seated (Max) | 0.055" (1.40mm) |
| Features | - |
