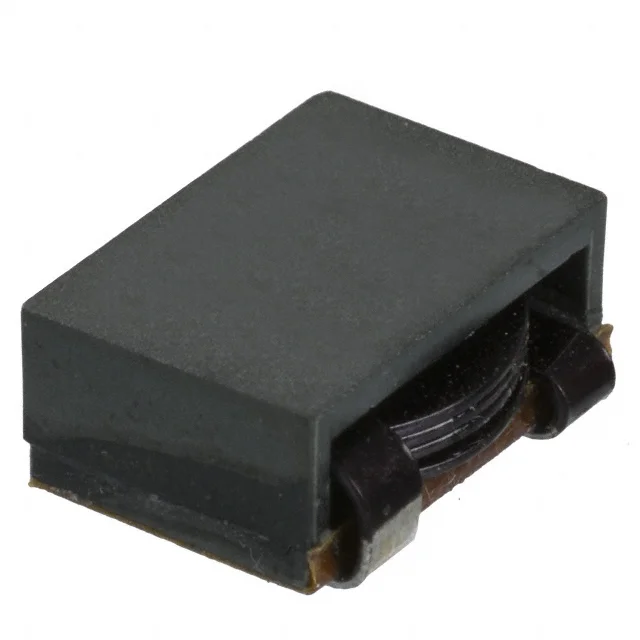

Description
FIXED IND 2.4UH 16.5A 2.76 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for B82559A0242A013.
B82559A0242A013 has an inductance value of 2.4 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
B82559A0242A013 is rated for 16.5 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
B82559A0242A013 lists a DC resistance of 2.76mOhm. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
B82559A0242A013 uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from B82559A0242A013 to manufacturer, series, and broader datasheet collections.
Similar-specification candidates · Engineering review required
Screened against recorded construction, core, mounting, dimensions and current/DCR. Land pattern, test conditions and circuit compatibility still require validation.
Missing evidence or no candidates passed screening. A replacement cannot be determined; request a review of the original datasheets.
Product Attributes
| Inductance | 2.4 µH |
| Tolerance | ±10% |
| Current Rating | 16.5 A |
| DC Resistance (DCR) | 2.76mOhm |
| Saturation Current | 16.5A |
| Operating Temperature | -40°C ~ 130°C |
| Dimensions | 0.512" L x 0.421" W (13.00mm x 10.70mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | TDK |
| Description | FIXED IND 2.4UH 16.5A 2.76 MOHM |
| Series | ERU13 - Flat Wire Inductor |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Inductance Test Frequency | 10 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.234" (5.95mm) |
