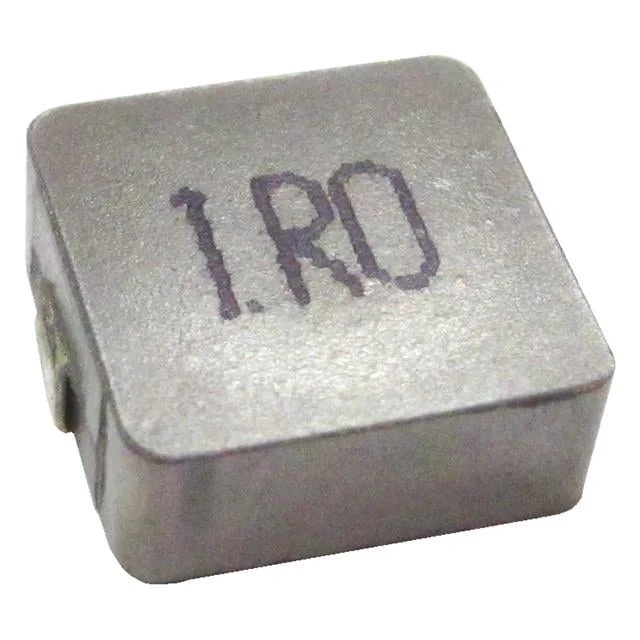

FIXED IND 6.8UH 2.8A 110 MOHM
| Inductance | 6.8 µH |
| Tolerance | ±20% |
| Current Rating | 2.8 A |
| DC Resistance (DCR) | 110mOhm Max |
| saturationCurrent | 3.5A |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.291" L x 0.260" W (7.40mm x 6.60mm) |
| Case / Size | Nonstandard |
| Supplier | Pulse Electronics |
| Description | FIXED IND 6.8UH 2.8A 110 MOHM |
| Series | BMMA |
| productStatus | Active |
| typeConstruction | Molded |
| coreMaterial | - |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.071" (1.80mm) |
| features | - |
