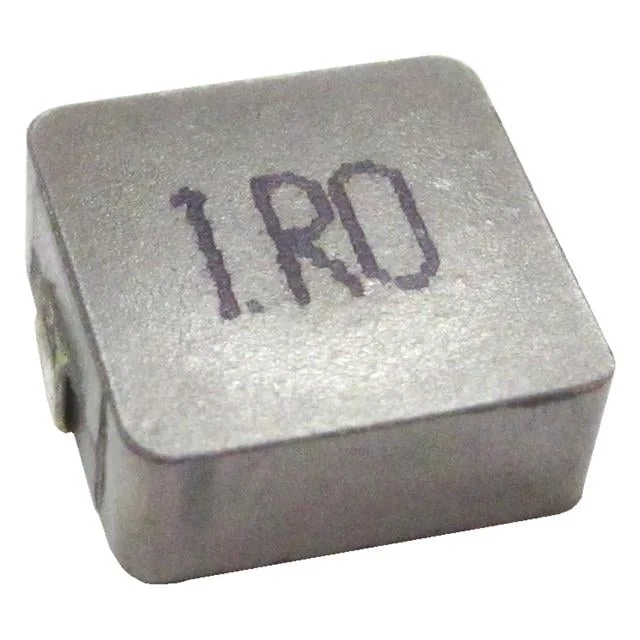

FIXED IND 560NH 20A 3.6 MOHM SMD
| Inductance | 560 nH |
| Tolerance | ±20% |
| Current Rating | 20 A |
| DC Resistance (DCR) | 3.6mOhm Max |
| saturationCurrent | 12A |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.270" L x 0.255" W (6.86mm x 6.47mm) |
| Case / Size | Nonstandard |
| Supplier | Pulse Electronics |
| Description | FIXED IND 560NH 20A 3.6 MOHM SMD |
| Series | BMMA |
| productStatus | Active |
| typeConstruction | Molded |
| coreMaterial | - |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.197" (5.00mm) |
| features | - |
