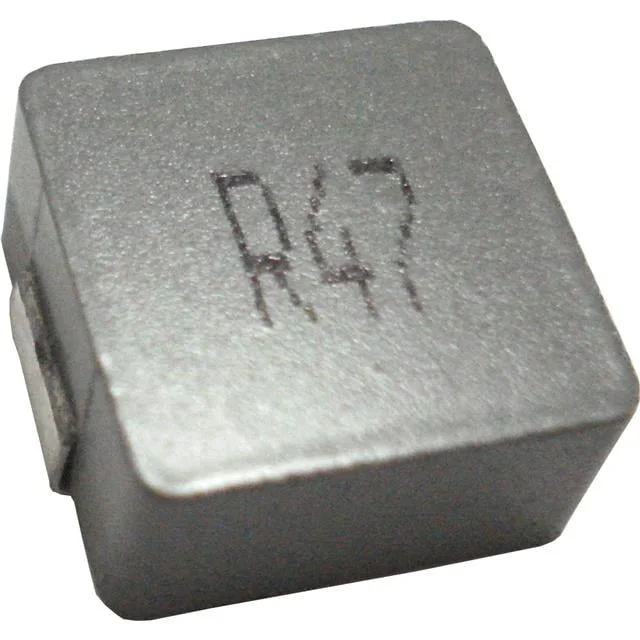

Description
FIXED IND 1UH 4A 43 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for BMQE000404101R0MAA.
BMQE000404101R0MAA has an inductance value of 1 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
BMQE000404101R0MAA is rated for 4 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
BMQE000404101R0MAA lists a DC resistance of 43mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
BMQE000404101R0MAA uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from BMQE000404101R0MAA to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 1 µH |
| Tolerance | ±20% |
| Current Rating | 4 A |
| DC Resistance (DCR) | 43mOhm Max |
| Saturation Current | 4A |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.181" L x 0.161" W (4.60mm x 4.10mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Pulse Electronics |
| Description | FIXED IND 1UH 4A 43 MOHM SMD |
| Series | BMQx |
| Product Status | Active |
| Type / Construction | Molded |
| Shielding | Shielded |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.039" (1.00mm) |
