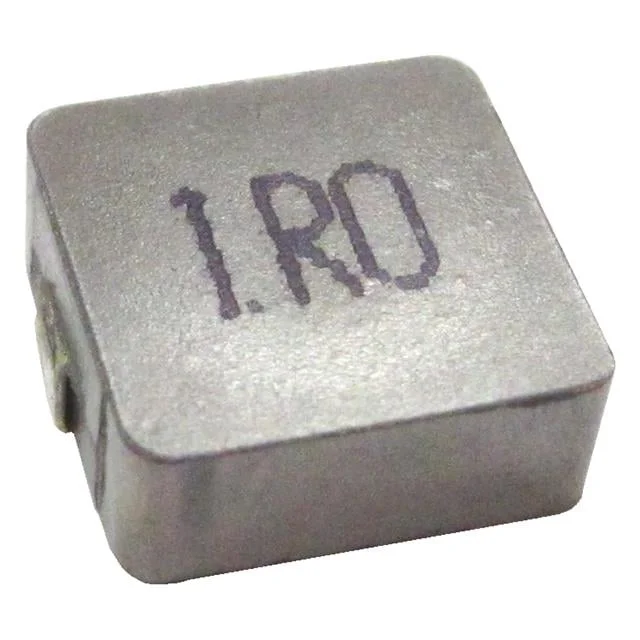

Description
FIXED IND 15UH 2.5A 160 MOHM SMD
Specifications
Inductance
15 µH
Current Rating
2.5 A
DC Resistance (DCR)
160mOhm Max
Dimensions
0.287" L x 0.260" W (7.30mm x 6.60mm)
Product Attributes
Manufacturer Verified
Last verified: 6/17/2026| Inductance | 15 µH |
| Tolerance | ±20% |
| Current Rating | 2.5 A |
| DC Resistance (DCR) | 160mOhm Max |
| saturationCurrent | 3.3A |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.287" L x 0.260" W (7.30mm x 6.60mm) |
| Case / Size | Nonstandard |
| Supplier | Pulse Electronics |
| Description | FIXED IND 15UH 2.5A 160 MOHM SMD |
| Series | BMRX |
| productStatus | Active |
| typeConstruction | Molded |
| coreMaterial | - |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.094" (2.40mm) |
| features | - |
