Description

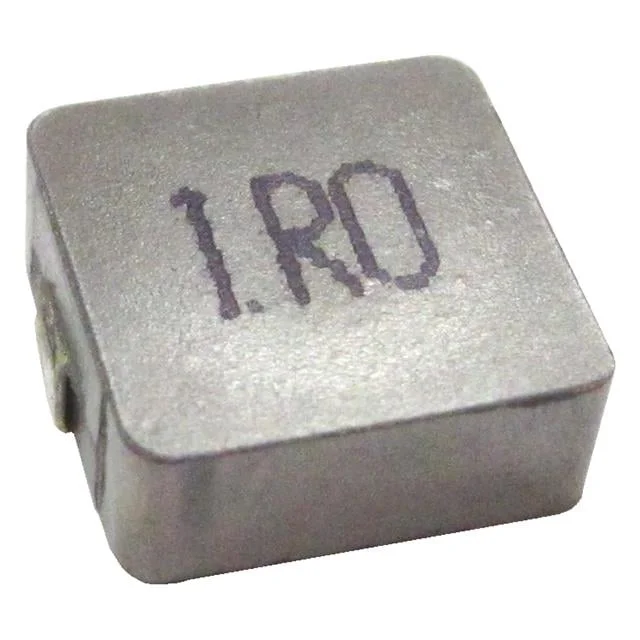

FIXED IND 450NH 33A 1.2 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for BMRF00101040R45MD1.
BMRF00101040R45MD1 has an inductance value of 450 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
BMRF00101040R45MD1 is rated for 33 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
BMRF00101040R45MD1 lists a DC resistance of 1.2mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
BMRF00101040R45MD1 uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from BMRF00101040R45MD1 to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 450 nH |
| Tolerance | ±20% |
| Current Rating | 33 A |
| DC Resistance (DCR) | 1.2mOhm Max |
| Saturation Current | 38A |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.457" L x 0.398" W (11.60mm x 10.10mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Pulse Electronics |
| Description | FIXED IND 450NH 33A 1.2 MOHM SMD |
| Series | BMRX |
| Product Status | Active |
| Type / Construction | Molded |
| Shielding | Shielded |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.157" (4.00mm) |
