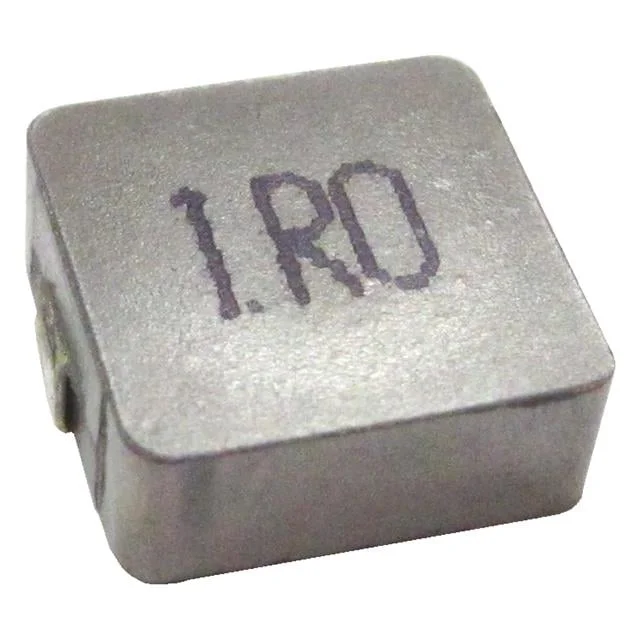

FIXED IND 22UH 8.7A 23 MOHM SMD
| Inductance | 22 µH |
| Tolerance | ±20% |
| Current Rating | 8.7 A |
| DC Resistance (DCR) | 23mOhm Max |
| saturationCurrent | 10.5A |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.675" L x 0.675" W (17.15mm x 17.15mm) |
| Case / Size | Nonstandard |
| Supplier | Pulse Electronics |
| Description | FIXED IND 22UH 8.7A 23 MOHM SMD |
| Series | BMRX |
| productStatus | Active |
| typeConstruction | Molded |
| coreMaterial | - |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.276" (7.00mm) |
| features | - |
