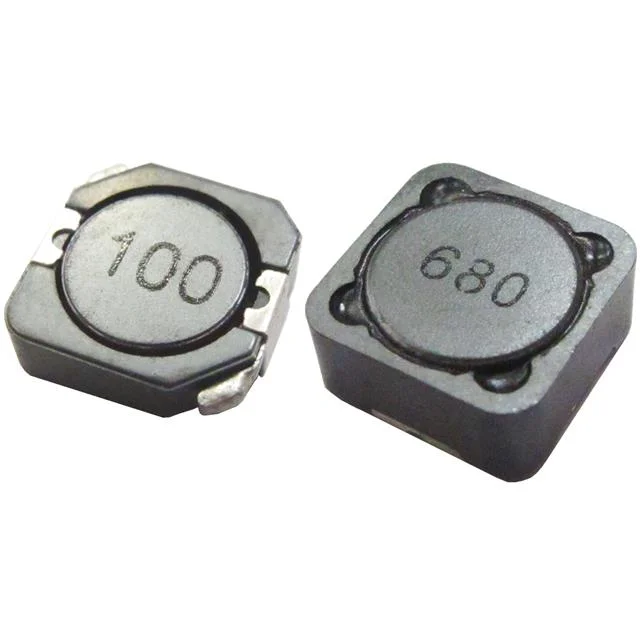

FIXED IND 10UH 3.4A 33 MOHM SMD
| Inductance | 10 µH |
| Tolerance | ±20% |
| Current Rating | 3.4 A |
| DC Resistance (DCR) | 33mOhm Max |
| saturationCurrent | 3A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.374" L x 0.295" W (9.50mm x 7.50mm) |
| Case / Size | Nonstandard |
| Supplier | Pulse Electronics |
| Description | FIXED IND 10UH 3.4A 33 MOHM SMD |
| Series | BPAS |
| productStatus | Active |
| typeConstruction | - |
| coreMaterial | - |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.177" (4.50mm) |
| features | - |
