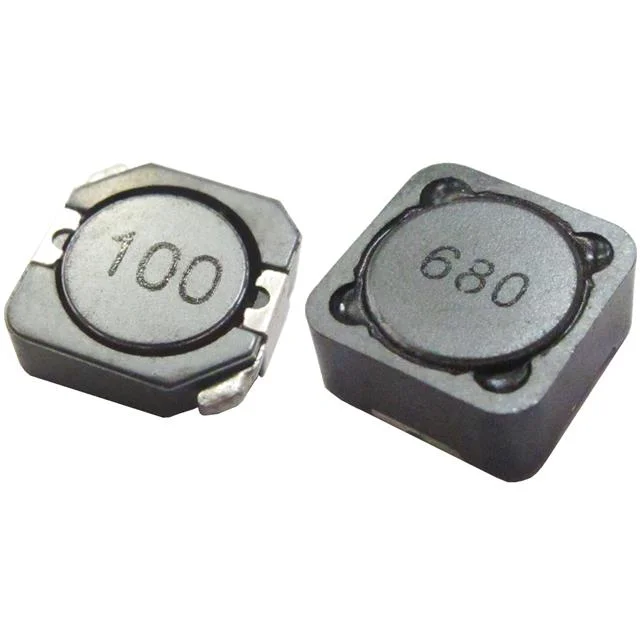

FIXED IND 4.7UH 4.8A 18 MOHM SMD
| Inductance | 4.7 µH |
| Tolerance | ±30% |
| Current Rating | 4.8 A |
| DC Resistance (DCR) | 18mOhm Max |
| saturationCurrent | 4.1A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.374" L x 0.295" W (9.50mm x 7.50mm) |
| Case / Size | Nonstandard |
| Supplier | Pulse Electronics |
| Description | FIXED IND 4.7UH 4.8A 18 MOHM SMD |
| Series | BPAS |
| productStatus | Active |
| typeConstruction | - |
| coreMaterial | - |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.177" (4.50mm) |
| features | - |
