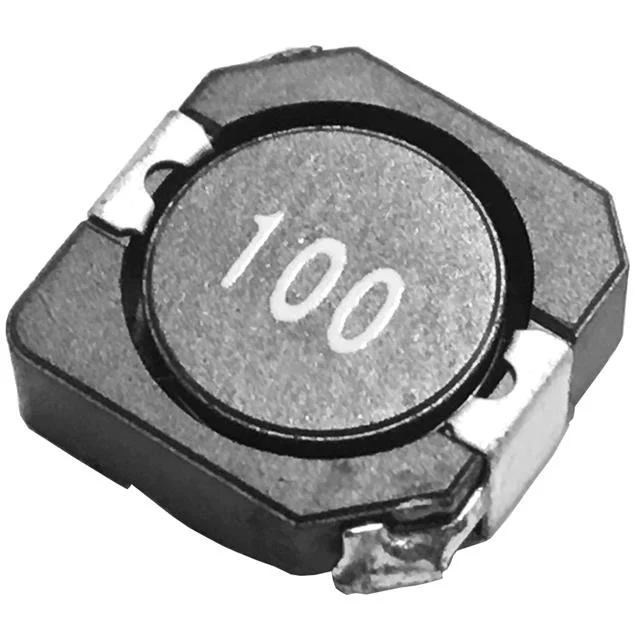

BPRR00101031151K00
Pulse Electronics
Description
FIXED IND 150UH 510MA 871 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for BPRR00101031151K00.
BPRR00101031151K00 has an inductance value of 150 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
BPRR00101031151K00 is rated for 510 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
BPRR00101031151K00 lists a DC resistance of 871mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
BPRR00101031151K00 uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from BPRR00101031151K00 to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 150 µH |
| Tolerance | ±10% |
| Current Rating | 510 mA |
| DC Resistance (DCR) | 871mOhm Max |
| Saturation Current | 840mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.398" L x 0.394" W (10.10mm x 10.00mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Pulse Electronics |
| Description | FIXED IND 150UH 510MA 871 MOHM |
| Series | BPRR |
| Product Status | Active |
| Core Material | Ferrite |
| Shielding | Shielded |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.122" (3.10mm) |
