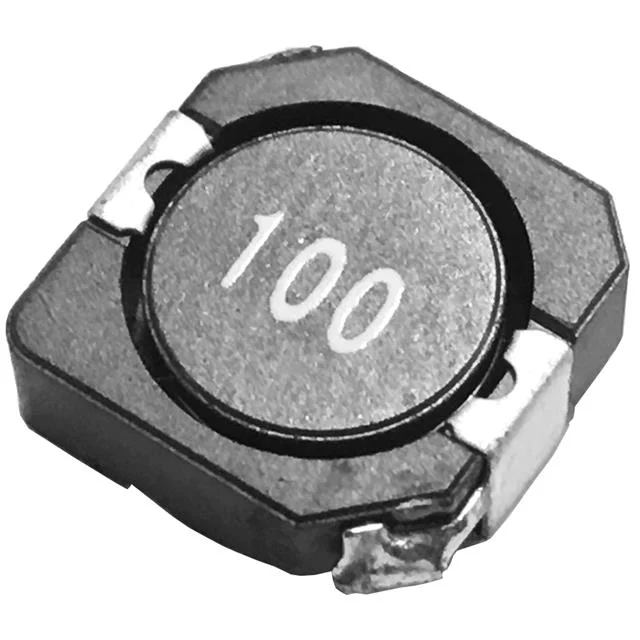

BPRR001010311R0T00
Pulse Electronics
Description
FIXED IND 1UH 5.8A 11 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for BPRR001010311R0T00.
BPRR001010311R0T00 has an inductance value of 1 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
BPRR001010311R0T00 is rated for 5.8 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
BPRR001010311R0T00 lists a DC resistance of 11mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
BPRR001010311R0T00 uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from BPRR001010311R0T00 to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 1 µH |
| Tolerance | ±30% |
| Current Rating | 5.8 A |
| DC Resistance (DCR) | 11mOhm Max |
| Saturation Current | 8A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.398" L x 0.394" W (10.10mm x 10.00mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Pulse Electronics |
| Description | FIXED IND 1UH 5.8A 11 MOHM SMD |
| Series | BPRR |
| Product Status | Active |
| Core Material | Ferrite |
| Shielding | Shielded |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.122" (3.10mm) |
