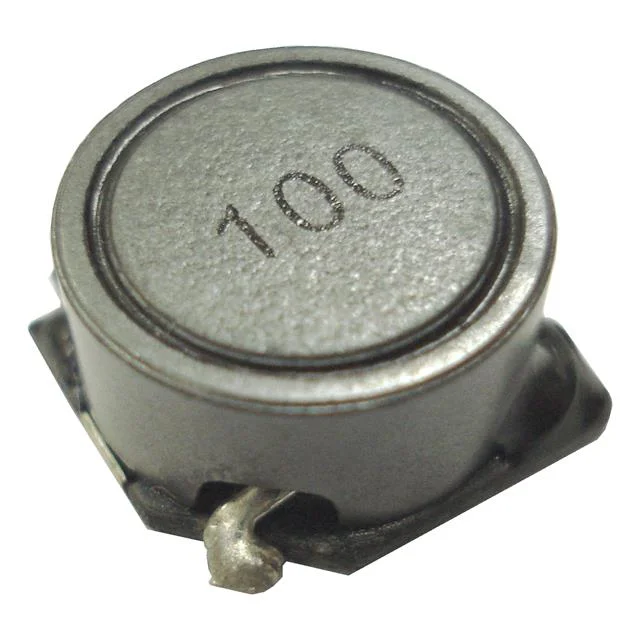

FIXED IND 10UH 83 MOHM SMD
| Inductance | 10 µH |
| Tolerance | ±20% |
| Current Rating | - |
| DC Resistance (DCR) | 83mOhm Max |
| saturationCurrent | 1.1A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.276" L x 0.276" W (7.00mm x 7.00mm) |
| Case / Size | Nonstandard |
| Supplier | Pulse Electronics |
| Description | FIXED IND 10UH 83 MOHM SMD |
| Series | BPSF |
| productStatus | Active |
| typeConstruction | - |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.118" (3.00mm) |
| features | - |
