Description

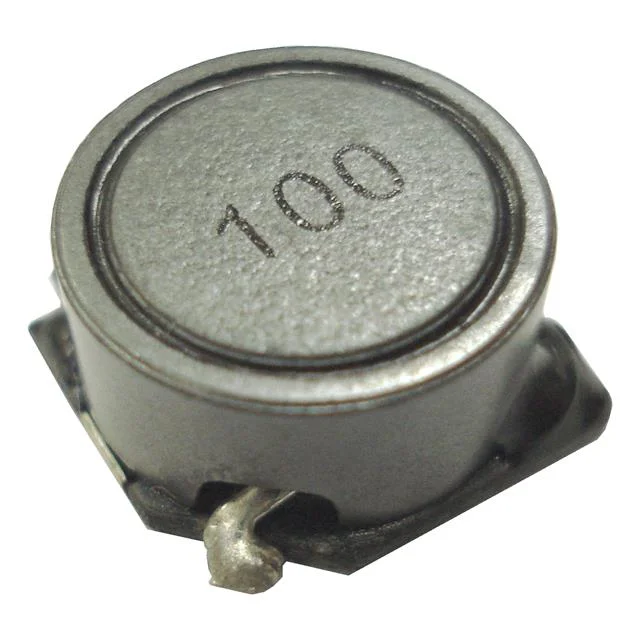

FIXED IND 5UH 45 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for BPSF000707285R0M00.
BPSF000707285R0M00 has an inductance value of 5 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
BPSF000707285R0M00 lists a DC resistance of 45mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
BPSF000707285R0M00 uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from BPSF000707285R0M00 to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 5 µH |
| Tolerance | ±20% |
| DC Resistance (DCR) | 45mOhm Max |
| Saturation Current | 2.4A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.276" L x 0.276" W (7.00mm x 7.00mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Pulse Electronics |
| Description | FIXED IND 5UH 45 MOHM SMD |
| Series | BPSF |
| Product Status | Active |
| Core Material | Ferrite |
| Shielding | Shielded |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.118" (3.00mm) |
