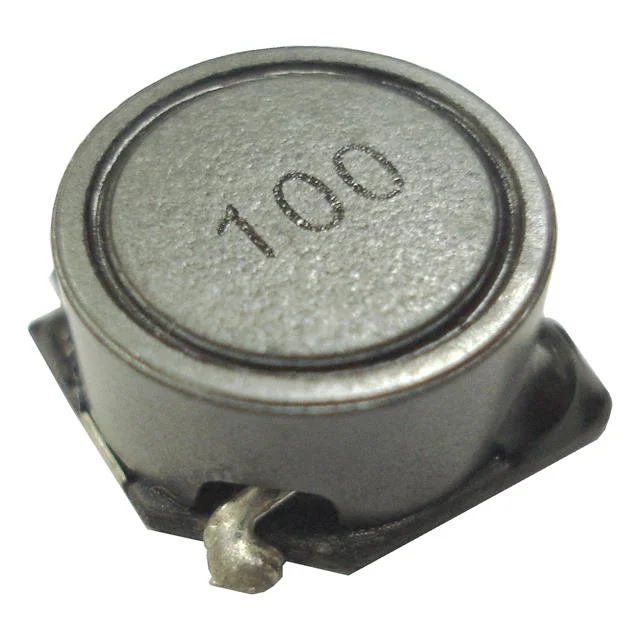

FIXED IND 2.2UH 3.5A 21.7 MOHM
| Inductance | 2.2 µH |
| Tolerance | ±30% |
| Current Rating | 3.5 A |
| DC Resistance (DCR) | 21.7mOhm Max |
| saturationCurrent | 5.3A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.276" L x 0.276" W (7.00mm x 7.00mm) |
| Case / Size | Nonstandard |
| Supplier | Pulse Electronics |
| Description | FIXED IND 2.2UH 3.5A 21.7 MOHM |
| Series | BPSF |
| productStatus | Active |
| typeConstruction | - |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.228" (5.80mm) |
| features | - |
