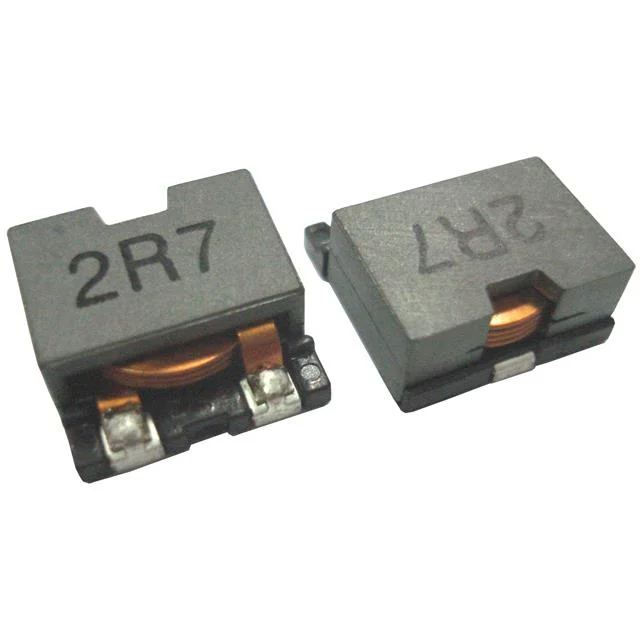

FIXED IND 1.8UH 7.92A 9.6 MOHM
| Inductance | 1.8 µH |
| Tolerance | ±30% |
| Current Rating | 7.92 A |
| DC Resistance (DCR) | 9.6mOhm Max |
| saturationCurrent | 8.6A |
| Operating Temperature | -40°C ~ 105°C |
| Dimensions | 0.362" L x 0.291" W (9.20mm x 7.40mm) |
| Case / Size | Nonstandard |
| Supplier | Pulse Electronics |
| Description | FIXED IND 1.8UH 7.92A 9.6 MOHM |
| Series | BPSS |
| productStatus | Active |
| typeConstruction | - |
| coreMaterial | - |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.157" (4.00mm) |
| features | - |
