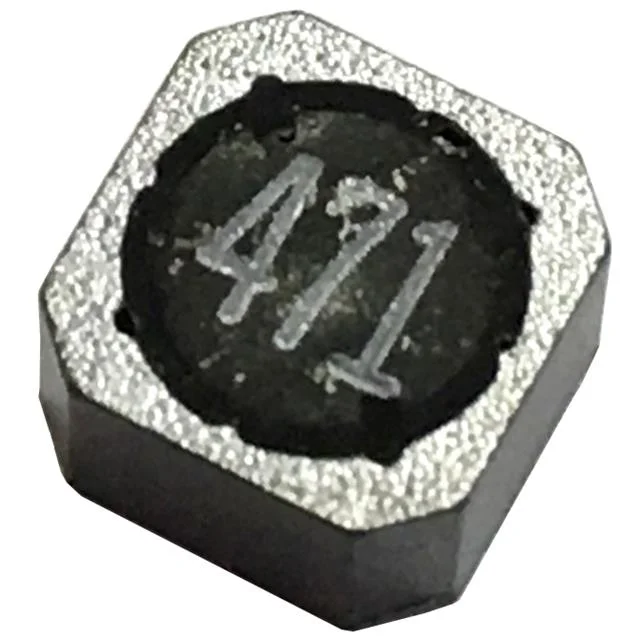

FIXED IND 8.2UH 650MA 550 MOHM
| Inductance | 8.2 µH |
| Tolerance | ±20% |
| Current Rating | 650 mA |
| DC Resistance (DCR) | 550mOhm Max |
| saturationCurrent | 650mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.118" L x 0.118" W (3.00mm x 3.00mm) |
| Case / Size | 1212 (3030 Metric) |
| Supplier | Pulse Electronics |
| Description | FIXED IND 8.2UH 650MA 550 MOHM |
| Series | BPXX |
| productStatus | Active |
| typeConstruction | - |
| coreMaterial | - |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 1212 |
| heightMax | 0.047" (1.20mm) |
| features | - |
