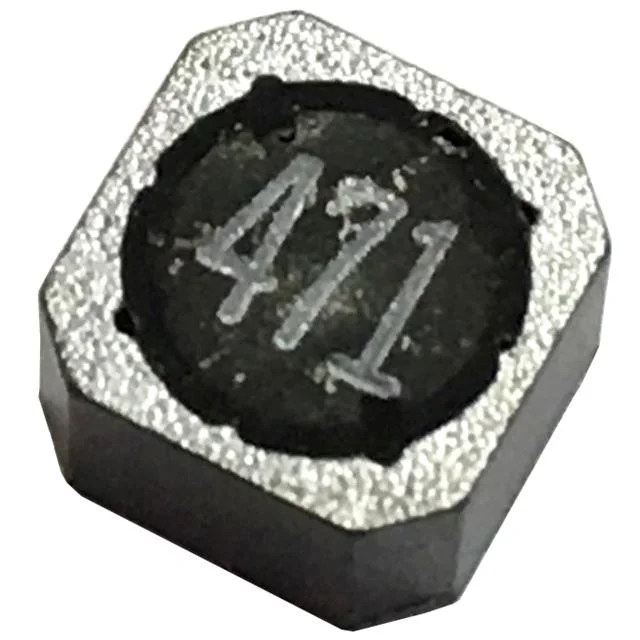

FIXED IND 470NH 2.5A 50 MOHM SMD
| Inductance | 470 nH |
| Tolerance | ±30% |
| Current Rating | 2.5 A |
| DC Resistance (DCR) | 50mOhm Max |
| saturationCurrent | 2.5A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.118" L x 0.118" W (3.00mm x 3.00mm) |
| Case / Size | 1212 (3030 Metric) |
| Supplier | Pulse Electronics |
| Description | FIXED IND 470NH 2.5A 50 MOHM SMD |
| Series | BPXX |
| productStatus | Active |
| typeConstruction | - |
| coreMaterial | - |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 1212 |
| heightMax | 0.047" (1.20mm) |
| features | - |
