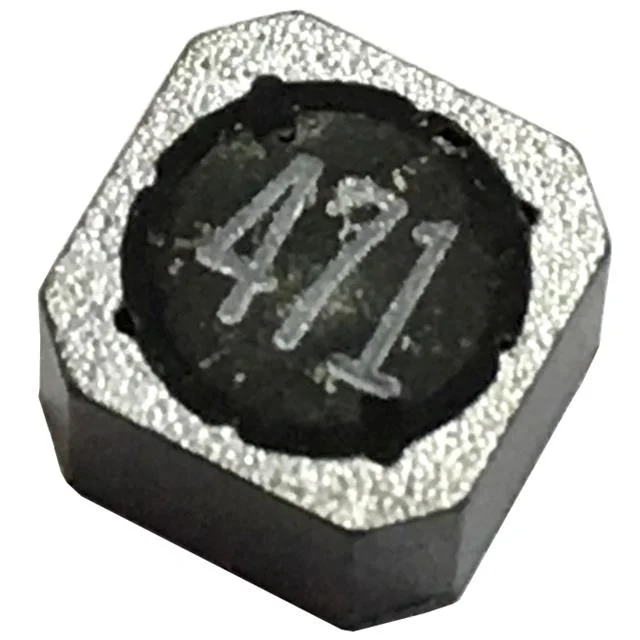

FIXED IND 100UH 400MA 1.4 OHM
| Inductance | 100 µH |
| Tolerance | ±30% |
| Current Rating | 400 mA |
| DC Resistance (DCR) | 1.4Ohm Max |
| saturationCurrent | 260mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.157" L x 0.157" W (4.00mm x 4.00mm) |
| Case / Size | 1616 (4040 Metric) |
| Supplier | Pulse Electronics |
| Description | FIXED IND 100UH 400MA 1.4 OHM |
| Series | BPXX |
| productStatus | Active |
| typeConstruction | - |
| coreMaterial | - |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 1616 |
| heightMax | 0.079" (2.00mm) |
| features | - |
