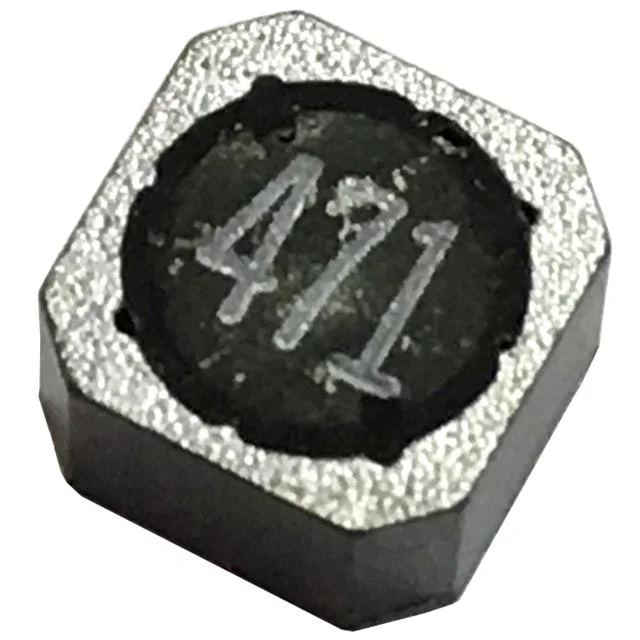

FIXED IND 2.2UH 1.4A 45 MOHM SMD
| Inductance | 2.2 µH |
| Tolerance | ±30% |
| Current Rating | 1.4 A |
| DC Resistance (DCR) | 45mOhm Max |
| saturationCurrent | 3.9A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.236" L x 0.236" W (6.00mm x 6.00mm) |
| Case / Size | 2424 (6060 Metric) |
| Supplier | Pulse Electronics |
| Description | FIXED IND 2.2UH 1.4A 45 MOHM SMD |
| Series | BPXX |
| productStatus | Active |
| typeConstruction | - |
| coreMaterial | - |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 2424 |
| heightMax | 0.098" (2.50mm) |
| features | - |
