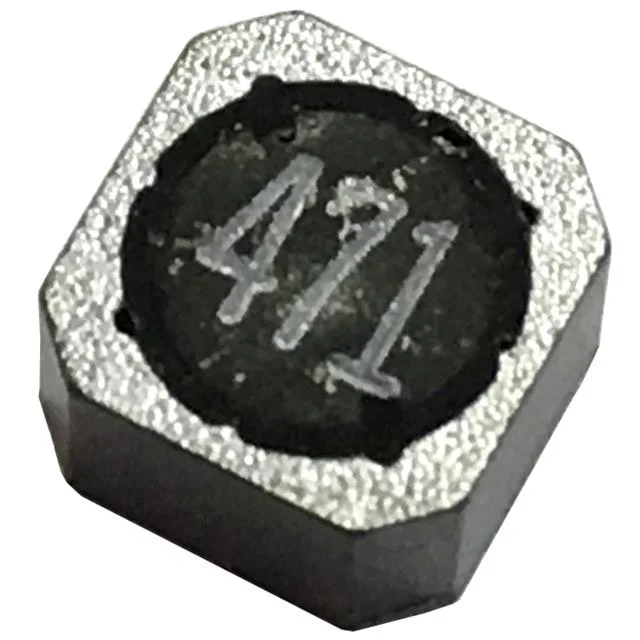

FIXED IND 10UH 1.8A 100 MOHM SMD
| Inductance | 10 µH |
| Tolerance | ±20% |
| Current Rating | 1.8 A |
| DC Resistance (DCR) | 100mOhm Max |
| saturationCurrent | 2.5A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.236" L x 0.236" W (6.00mm x 6.00mm) |
| Case / Size | 2424 (6060 Metric) |
| Supplier | Pulse Electronics |
| Description | FIXED IND 10UH 1.8A 100 MOHM SMD |
| Series | BPXX |
| productStatus | Active |
| typeConstruction | - |
| coreMaterial | - |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 2424 |
| heightMax | 0.138" (3.50mm) |
| features | - |
