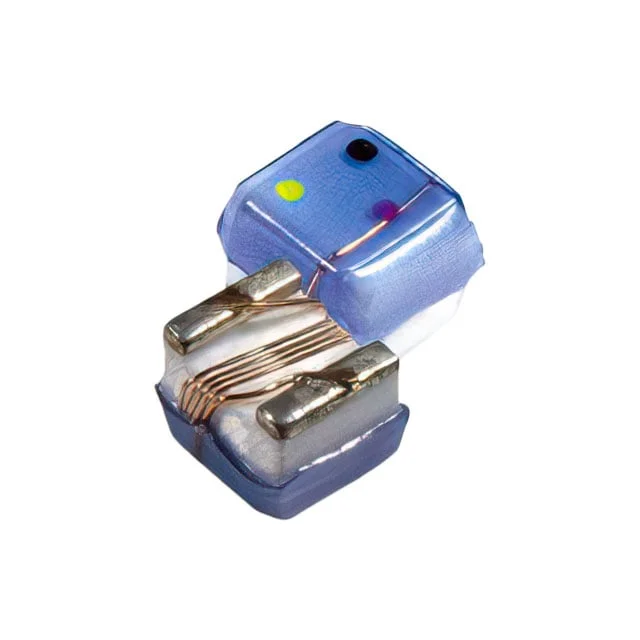

FIXED IND 6.9NH 460MA 150 MOHM
| Inductance | 6.9 nH |
| Tolerance | ±5% |
| Current Rating | 460 mA |
| DC Resistance (DCR) | 150mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.023" L x 0.018" W (0.58mm x 0.46mm) |
| Case / Size | 0201 (0603 Metric) |
| Supplier | Pulse Electronics |
| Description | FIXED IND 6.9NH 460MA 150 MOHM |
| Series | BWCS |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ceramic |
| shielding | Unshielded |
| qFactor | 18 @ 250MHz |
| selfResonantFreq | 9.3GHz |
| ratings | - |
| testFrequency | 250 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 0201 |
| heightMax | 0.018" (0.45mm) |
| features | - |
