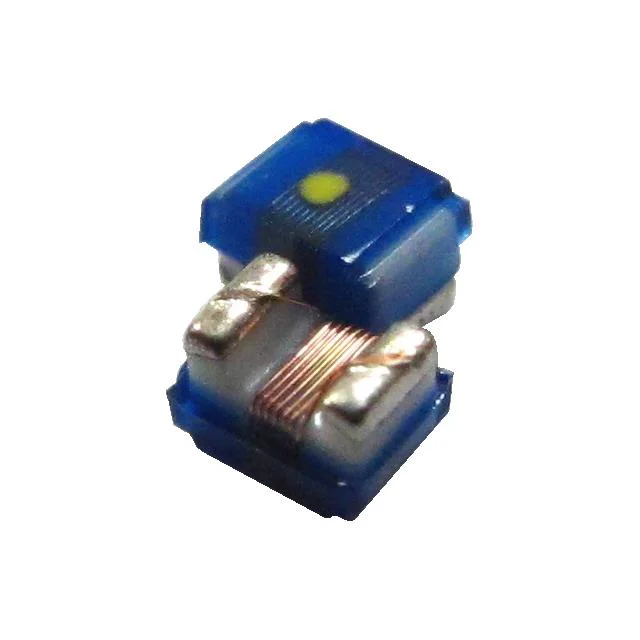

FIXED IND 3.6NH 1.6A 44 MOHM SMD
| Inductance | 3.6 nH |
| Tolerance | ±3% |
| Current Rating | 1.6 A |
| DC Resistance (DCR) | 44mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.063" L x 0.035" W (1.60mm x 0.90mm) |
| Case / Size | 0603 (1608 Metric) |
| Supplier | Pulse Electronics |
| Description | FIXED IND 3.6NH 1.6A 44 MOHM SMD |
| Series | BWCT |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ceramic |
| shielding | Unshielded |
| qFactor | 28 @ 250MHz |
| selfResonantFreq | 7GHz |
| ratings | - |
| testFrequency | 250 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 0603 |
| heightMax | 0.024" (0.60mm) |
| features | - |
