Description

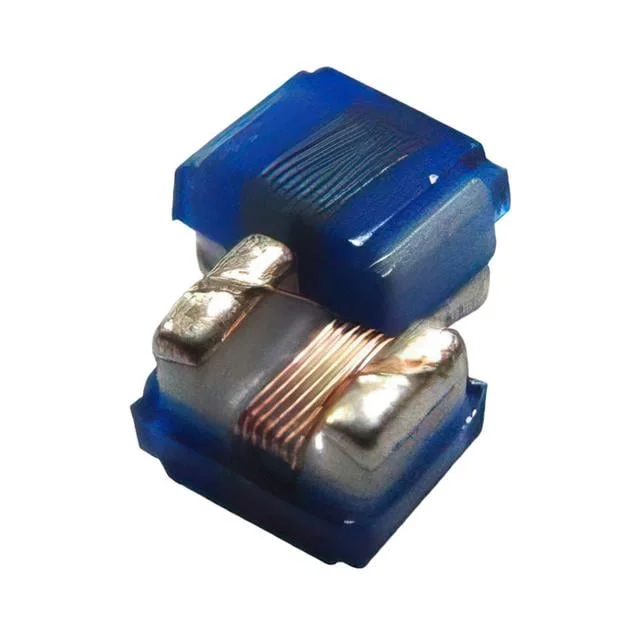

FIXED IND 4.3NH 1.3A 88 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for BWHP001610084N3H00.
BWHP001610084N3H00 has an inductance value of 4.3 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
BWHP001610084N3H00 is rated for 1.3 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
BWHP001610084N3H00 lists a DC resistance of 88mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
BWHP001610084N3H00 uses a package or case of 0603 (1608 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from BWHP001610084N3H00 to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 4.3 nH |
| Tolerance | ±3% |
| Current Rating | 1.3 A |
| DC Resistance (DCR) | 88mOhm Max |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.063" L x 0.039" W (1.60mm x 1.00mm) |
| Case / Size | 0603 (1608 Metric) |
| Package / Case | 0603 (1608 Metric) |
| Supplier | Pulse Electronics |
| Description | FIXED IND 4.3NH 1.3A 88 MOHM SMD |
| Series | BWHP |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ceramic |
| Shielding | Unshielded |
| Q @ Frequency | 26 @ 250MHz |
| Self Resonant Frequency | 7.5GHz |
| Inductance Test Frequency | 250 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 0603 |
| Height - Seated (Max) | 0.040" (1.02mm) |
