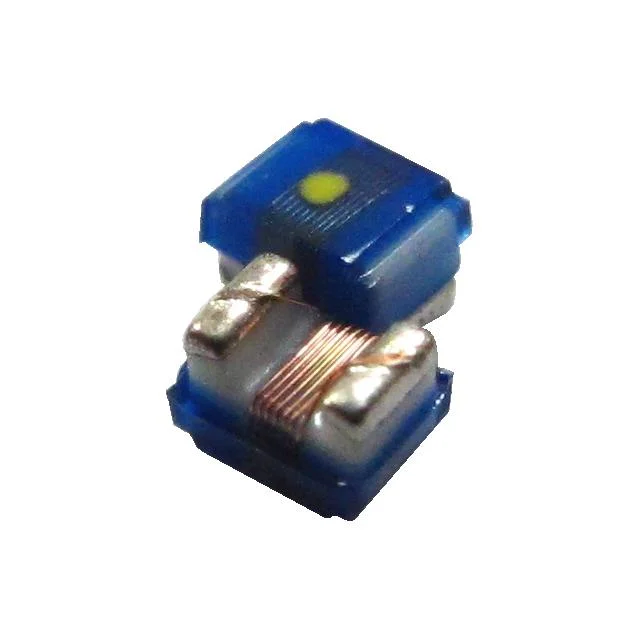

FIXED IND 200NH 280MA 2 OHM SMD
| Inductance | 200 nH |
| Tolerance | ±5% |
| Current Rating | 280 mA |
| DC Resistance (DCR) | 2Ohm Max |
| saturationCurrent | - |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.063" L x 0.039" W (1.60mm x 1.00mm) |
| Case / Size | 0603 (1608 Metric) |
| Supplier | Pulse Electronics |
| Description | FIXED IND 200NH 280MA 2 OHM SMD |
| Series | BWHP |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ceramic |
| shielding | Unshielded |
| qFactor | 47 @ 250MHz |
| selfResonantFreq | 1.25GHz |
| ratings | - |
| testFrequency | 100 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 0603 |
| heightMax | 0.040" (1.02mm) |
| features | - |
