BWHQ00302821R12G00
Pulse Electronics
Description

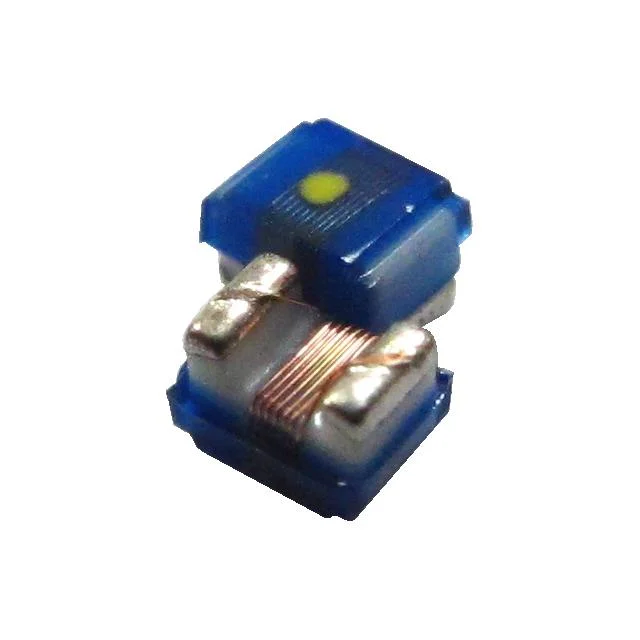

FIXED IND 120NH 1A 200 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for BWHQ00302821R12G00.
BWHQ00302821R12G00 has an inductance value of 120 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
BWHQ00302821R12G00 is rated for 1 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
BWHQ00302821R12G00 lists a DC resistance of 200mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
BWHQ00302821R12G00 uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from BWHQ00302821R12G00 to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 120 nH |
| Tolerance | ±2% |
| Current Rating | 1 A |
| DC Resistance (DCR) | 200mOhm Max |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.117" L x 0.110" W (2.96mm x 2.79mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Pulse Electronics |
| Description | FIXED IND 120NH 1A 200 MOHM SMD |
| Series | BWHQ |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ceramic |
| Shielding | Unshielded |
| Q @ Frequency | 50 @ 100MHz |
| Self Resonant Frequency | 950MHz |
| Inductance Test Frequency | 25 MHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.083" (2.10mm) |
