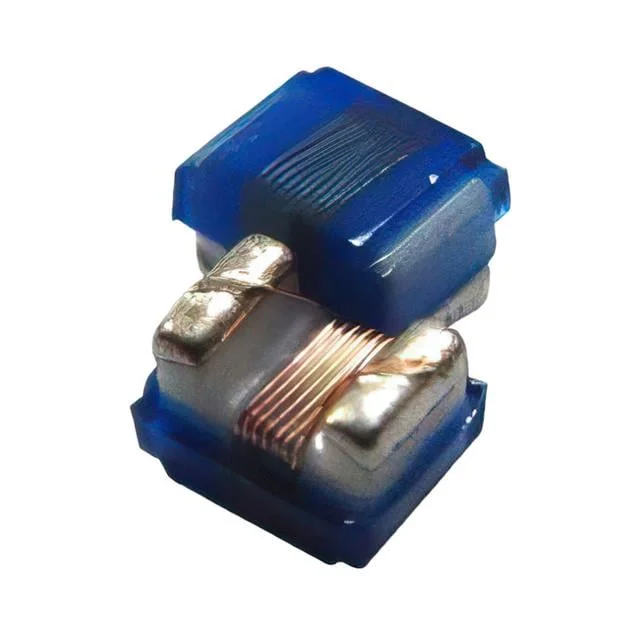

FIXED IND 33UH 2.6 OHM SMD
| Inductance | 33 µH |
| Tolerance | ±10% |
| Current Rating | - |
| DC Resistance (DCR) | 2.6Ohm |
| saturationCurrent | 120mA |
| Operating Temperature | -25°C ~ 105°C |
| Dimensions | 0.094" L x 0.068" W (2.40mm x 1.72mm) |
| Case / Size | Nonstandard |
| Supplier | Pulse Electronics |
| Description | FIXED IND 33UH 2.6 OHM SMD |
| Series | BWLD |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | 17 @ 2.52MHz |
| selfResonantFreq | 15MHz |
| ratings | - |
| testFrequency | 2.52 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.060" (1.52mm) |
| features | - |
