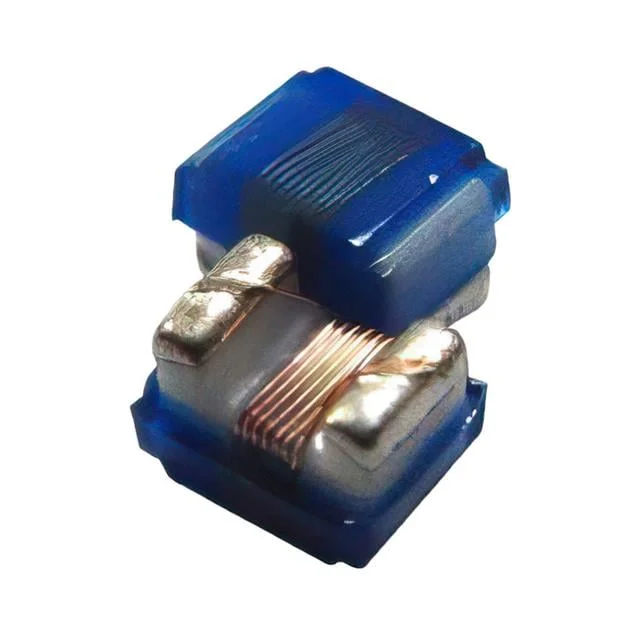

Description
FIXED IND 85NH 1.4A 60 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for BWLM0018100985NJ00.
BWLM0018100985NJ00 has an inductance value of 85 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
BWLM0018100985NJ00 is rated for 1.4 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
BWLM0018100985NJ00 lists a DC resistance of 60mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
BWLM0018100985NJ00 uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from BWLM0018100985NJ00 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 85 nH |
| Tolerance | ±5% |
| Current Rating | 1.4 A |
| DC Resistance (DCR) | 60mOhm Max |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.071" L x 0.039" W (1.80mm x 1.00mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Pulse Electronics |
| Description | FIXED IND 85NH 1.4A 60 MOHM SMD |
| Series | BWLM |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Self Resonant Frequency | 1.38GHz |
| Inductance Test Frequency | 100 MHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.039" (1.00mm) |
