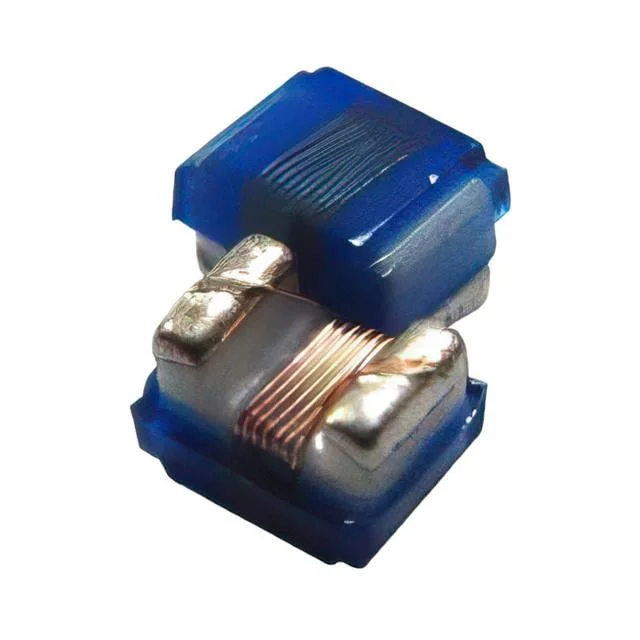

Description
FIXED IND 130NH 400MA 440 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for BWLS00060404R13J00.
BWLS00060404R13J00 has an inductance value of 130 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
BWLS00060404R13J00 is rated for 400 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
BWLS00060404R13J00 lists a DC resistance of 440mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
BWLS00060404R13J00 uses a package or case of 0201 (0603 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from BWLS00060404R13J00 to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 130 nH |
| Tolerance | ±5% |
| Current Rating | 400 mA |
| DC Resistance (DCR) | 440mOhm Max |
| Operating Temperature | -25°C ~ 105°C |
| Dimensions | 0.023" L x 0.018" W (0.58mm x 0.46mm) |
| Case / Size | 0201 (0603 Metric) |
| Package / Case | 0201 (0603 Metric) |
| Supplier | Pulse Electronics |
| Description | FIXED IND 130NH 400MA 440 MOHM |
| Series | BWLS |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Q @ Frequency | 7 @ 100MHz |
| Self Resonant Frequency | 1.5GHz |
| Inductance Test Frequency | 100 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 0201 |
| Height - Seated (Max) | 0.018" (0.45mm) |
